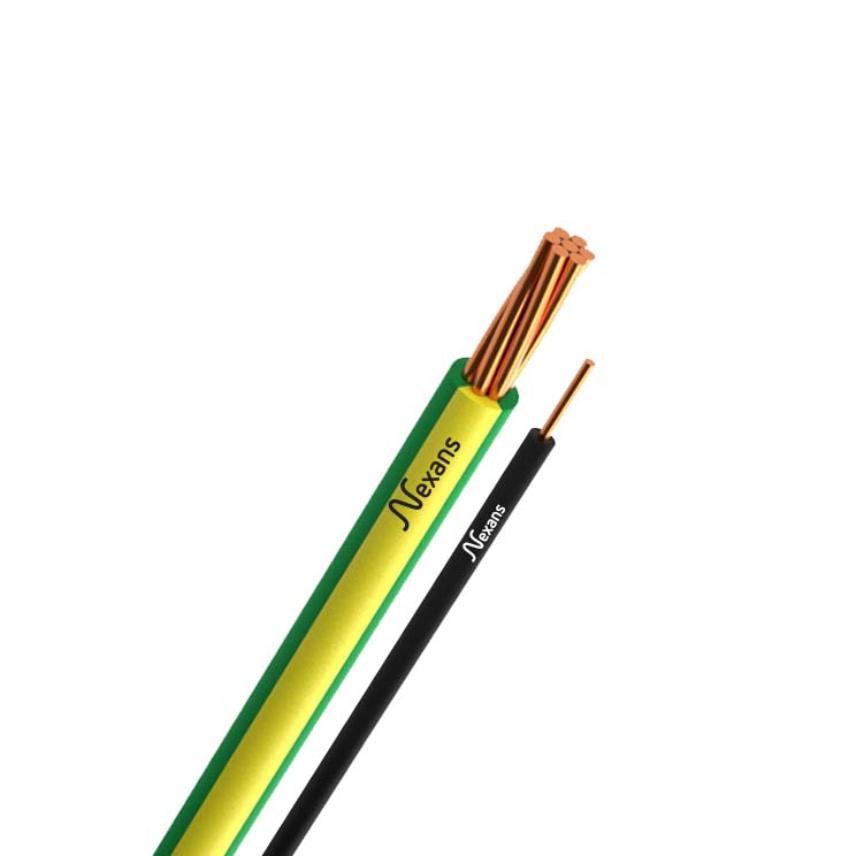

H07V-U Eca / H07V-R Eca

Products

07V-U Eca 1.5 BLACK/WHITE D100 P24km`

Nexans ref. 10541987

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Black / white
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 24.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-R Eca 16 GN/YE

Nexans ref. 10533149

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 16 mm²
  • Permissible current rating in open air: 76 A
  • Voltage drop, single phase: 2.3 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-R Eca 25 GN/YE

Nexans ref. 10533261

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 25 mm²
  • Permissible current rating in open air: 101 A
  • Voltage drop, single phase: 1.5 V/A.km
  • Bending factor when laying: 5 (xD)



H07V-R Eca 50 BLACK

Nexans ref. 10533268

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Black
  • Conductor cross-section: 50 mm²
  • Permissible current rating in open air: 151 A
  • Voltage drop, single phase: 0.84 V/A.km
  • Bending factor when laying: 5 (xD)



H07V-R Eca 70 GN/YE

Nexans ref. 10533269

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 70 mm²
  • Permissible current rating in open air: 192 A
  • Voltage drop, single phase: 0.6 V/A.km
  • Bending factor when laying: 6 (xD)



H07V-R Eca 95 BLACK

Nexans ref. 10533272

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Black
  • Conductor cross-section: 95 mm²
  • Permissible current rating in open air: 232 A
  • Voltage drop, single phase: 0.46 V/A.km
  • Bending factor when laying: 6 (xD)



H07V-R Eca 10 BLACK R100 P3.6km

Nexans ref. 10533145

  • Packaging: Ring (100m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Black
  • Conductor cross-section: 10 mm²
  • Permissible current rating in open air: 57 A
  • Voltage drop, single phase: 3.7 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-R Eca 10 BLUE R100 P3.6km

Nexans ref. 10533144

  • Packaging: Ring (100m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Blue
  • Conductor cross-section: 10 mm²
  • Permissible current rating in open air: 57 A
  • Voltage drop, single phase: 3.7 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-R Eca 10 BROWN R100 P3.6km

Nexans ref. 10533146

  • Packaging: Ring (100m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Brown
  • Conductor cross-section: 10 mm²
  • Permissible current rating in open air: 57 A
  • Voltage drop, single phase: 3.7 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-R Eca 10 GN/YE R100 P3.6km

Nexans ref. 10533147

  • Packaging: Ring (100m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 10 mm²
  • Permissible current rating in open air: 57 A
  • Voltage drop, single phase: 3.7 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-R Eca 120 BLACK

Nexans ref. 10533274

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Black
  • Conductor cross-section: 120 mm²
  • Permissible current rating in open air: 269 A
  • Voltage drop, single phase: 0.38 V/A.km
  • Bending factor when laying: 6 (xD)



H07V-R Eca 120 GN/YE

Nexans ref. 10533273

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 120 mm²
  • Permissible current rating in open air: 269 A
  • Voltage drop, single phase: 0.38 V/A.km
  • Bending factor when laying: 6 (xD)



H07V-R Eca 150 GN/YE

Nexans ref. 10533275

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 150 mm²
  • Permissible current rating in open air: 309 A
  • Voltage drop, single phase: 0.33 V/A.km
  • Bending factor when laying: 6 (xD)



H07V-R Eca 16 BLUE D100 P4.8km

Nexans ref. 10533148

  • Packaging: Box (100m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Blue
  • Conductor cross-section: 16 mm²
  • Permissible current rating in open air: 76 A
  • Voltage drop, single phase: 2.3 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-R Eca 16 GN/YE B500 P2km

Nexans ref. 10557164

  • Packaging: Drum (500m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 16 mm²
  • Permissible current rating in open air: 76 A
  • Voltage drop, single phase: 2.3 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-R Eca 16 GN/YE R100 P3.6km

Nexans ref. 10543751

  • Packaging: Ring (100m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 16 mm²
  • Permissible current rating in open air: 76 A
  • Voltage drop, single phase: 2.3 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-R Eca 185 BLACK

Nexans ref. 10533277

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Black
  • Conductor cross-section: 185 mm²
  • Permissible current rating in open air: 353 A
  • Voltage drop, single phase: 0.28 V/A.km
  • Bending factor when laying: 6 (xD)



H07V-R Eca 185 GN/YE

Nexans ref. 10533276

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 185 mm²
  • Permissible current rating in open air: 353 A
  • Voltage drop, single phase: 0.28 V/A.km
  • Bending factor when laying: 6 (xD)



H07V-R Eca 240 BLACK

Nexans ref. 10533279

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Blue
  • Conductor cross-section: 240 mm²
  • Permissible current rating in open air: 415 A
  • Voltage drop, single phase: 0.24 V/A.km
  • Bending factor when laying: 6 (xD)



H07V-R Eca 240 GN/YE

Nexans ref. 10533278

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 240 mm²
  • Permissible current rating in open air: 415 A
  • Voltage drop, single phase: 0.24 V/A.km
  • Bending factor when laying: 6 (xD)



H07V-R Eca 25 BLACK R100 P2.1km

Nexans ref. 10533264

  • Packaging: Ring (100m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Black
  • Conductor cross-section: 25 mm²
  • Permissible current rating in open air: 101 A
  • Voltage drop, single phase: 1.5 V/A.km
  • Bending factor when laying: 5 (xD)



H07V-R Eca 25 GN/YE D500 P2km

Nexans ref. 10533262

  • Packaging: Drum (500m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 25 mm²
  • Permissible current rating in open air: 101 A
  • Voltage drop, single phase: 1.5 V/A.km
  • Bending factor when laying: 5 (xD)



H07V-R Eca 25 GN/YE R100 P2.1km

Nexans ref. 10533263

  • Packaging: Ring (100m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 25 mm²
  • Permissible current rating in open air: 101 A
  • Voltage drop, single phase: 1.5 V/A.km
  • Bending factor when laying: 5 (xD)



H07V-R Eca 300 GN/YE

Nexans ref. 10542788

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 300 mm²
  • Permissible current rating in open air: 472 A
  • Voltage drop, single phase: 0.21 V/A.km
  • Bending factor when laying: 6 (xD)



H07V-R Eca 35 GN/YE

Nexans ref. 10533265

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 35 mm²
  • Permissible current rating in open air: 125 A
  • Voltage drop, single phase: 1.2 V/A.km
  • Bending factor when laying: 5 (xD)



H07V-R Eca 35 GN/YE R100 P2km

Nexans ref. 10533266

  • Packaging: Ring (100m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 35 mm²
  • Permissible current rating in open air: 125 A
  • Voltage drop, single phase: 1.2 V/A.km
  • Bending factor when laying: 5 (xD)



H07V-R Eca 50 GN/YE

Nexans ref. 10533267

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 50 mm²
  • Permissible current rating in open air: 151 A
  • Voltage drop, single phase: 0.84 V/A.km
  • Bending factor when laying: 5 (xD)



H07V-R Eca 70 BLACK

Nexans ref. 10533270

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Black
  • Conductor cross-section: 70 mm²
  • Permissible current rating in open air: 192 A
  • Voltage drop, single phase: 0.6 V/A.km
  • Bending factor when laying: 6 (xD)



H07V-R Eca 95 GN/YE

Nexans ref. 10533271

  • Packaging: Cut to length (m)
  • Conductor flexibility: Stranded class 2
  • Wire colour: Green / yellow
  • Conductor cross-section: 95 mm²
  • Permissible current rating in open air: 232 A
  • Voltage drop, single phase: 0.46 V/A.km
  • Bending factor when laying: 6 (xD)



H07V-U Eca 1.5 ORANGE D100 P6km

Nexans ref. 10533307

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Orange
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 24.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 1.5 PURPLE D100 P6km

Nexans ref. 10533308

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Violet
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 24.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 1.5 WHITE D100 P24km

Nexans ref. 10542007

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: White
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 24.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 1.5 WHITE D100 P6km

Nexans ref. 10533311

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: White
  • Conductor cross-section: 1.5 mm²
  • Permissible current rating in open air: 18 A
  • Voltage drop, single phase: 24.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 2.5 ORANGE D100 P6km

Nexans ref. 10533326

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Orange
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 14.8 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 2.5 PURPLE D100 P6km

Nexans ref. 10533327

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Violet
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 14.8 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 2.5 WHITE D100 P6km

Nexans ref. 10533329

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: White
  • Conductor cross-section: 2.5 mm²
  • Permissible current rating in open air: 24 A
  • Voltage drop, single phase: 14.8 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 4 BLACK D100 P16.5km

Nexans ref. 10533291

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Black
  • Conductor cross-section: 4 mm²
  • Permissible current rating in open air: 32 A
  • Voltage drop, single phase: 9.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 4 BLUE D100 P16.5km

Nexans ref. 10533290

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Blue
  • Conductor cross-section: 4 mm²
  • Permissible current rating in open air: 32 A
  • Voltage drop, single phase: 9.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 4 BROWN D100 P16.5km

Nexans ref. 10533294

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Brown
  • Conductor cross-section: 4 mm²
  • Permissible current rating in open air: 32 A
  • Voltage drop, single phase: 9.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 4 RD D100 P16.5km

Nexans ref. 10533293

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Red
  • Conductor cross-section: 4 mm²
  • Permissible current rating in open air: 32 A
  • Voltage drop, single phase: 9.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 4 GN/YE D100 P16.5km

Nexans ref. 10533292

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Green / yellow
  • Conductor cross-section: 4 mm²
  • Permissible current rating in open air: 32 A
  • Voltage drop, single phase: 9.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 6 BLACK D100 P12km

Nexans ref. 10533296

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Black
  • Conductor cross-section: 6 mm²
  • Permissible current rating in open air: 41 A
  • Voltage drop, single phase: 6.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 6 BLUE D100 P12km

Nexans ref. 10533295

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Blue
  • Conductor cross-section: 6 mm²
  • Permissible current rating in open air: 41 A
  • Voltage drop, single phase: 6.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 6 BROWN D100 P12km

Nexans ref. 10533300

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Brown
  • Conductor cross-section: 6 mm²
  • Permissible current rating in open air: 41 A
  • Voltage drop, single phase: 6.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 6 RD D100 P12km

Nexans ref. 10533298

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Red
  • Conductor cross-section: 6 mm²
  • Permissible current rating in open air: 41 A
  • Voltage drop, single phase: 6.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 6 GN/YE

Nexans ref. 10533299

  • Packaging: Cut to length (m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Green / yellow
  • Conductor cross-section: 6 mm²
  • Permissible current rating in open air: 41 A
  • Voltage drop, single phase: 6.2 V/A.km
  • Bending factor when laying: 4 (xD)



H07V-U Eca 6 GN/YE D100 P12km

Nexans ref. 10533297

  • Packaging: Box (100m)
  • Conductor flexibility: Solid class 1
  • Wire colour: Green / yellow
  • Conductor cross-section: 6 mm²
  • Permissible current rating in open air: 41 A
  • Voltage drop, single phase: 6.2 V/A.km
  • Bending factor when laying: 4 (xD)



Description

Description

Standards

  • Product
    EN 50525-2-31; IEC 60228

Application

  • PVC-insulated conductors for fixed installations
  • Domestic and industrial
  • Panel wiring
  • Rated voltage up to and including 450/750 V

Design

  1. Copper core, solid (U) or stranded (R)
  2. PVC insulating sheath

Installation

  • In industries
  • In houses
  • Suitable for installation in electrical installation in conduits, pipes or similar closed systems - surface or flush mount

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
PVC
Halogen free
No

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

Field of application
Indoor
Max. conductor temperature in service
70 °C
Operating temperature, range
0 ... 60 °C
Resistance to vibrations
Moderate
Chemical resistance
Medium

Resources

Resources

Selling & delivery Information

Other colours available upon request

Related products

Installation wires
Installation cables

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
