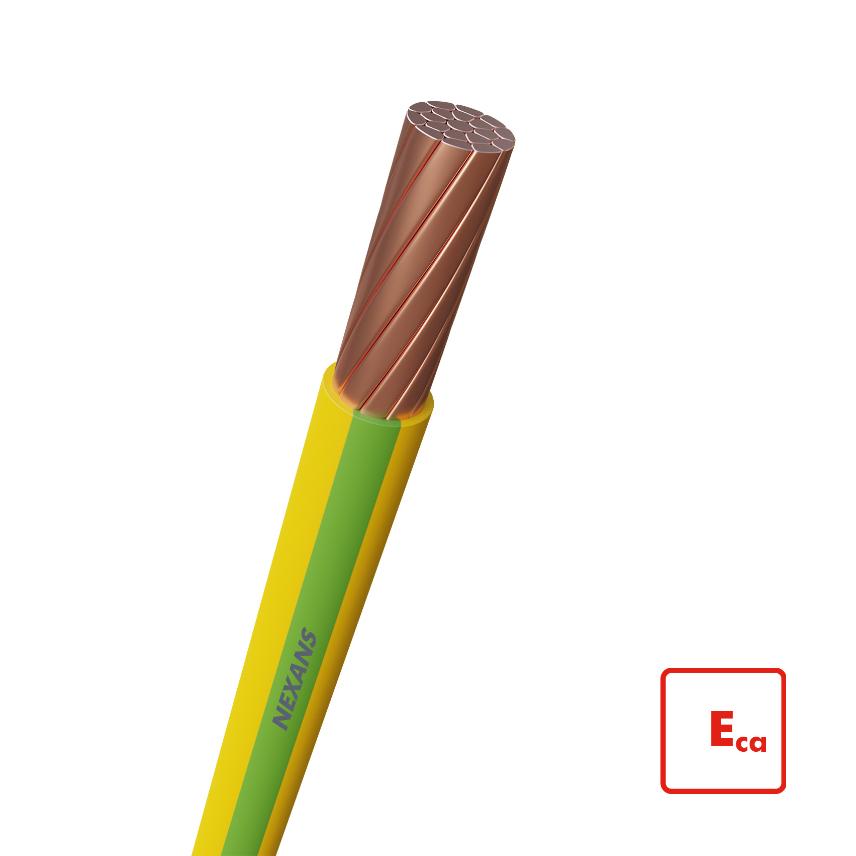

H07V-R Eca 95 GN/YE

H07V-U Eca and H07V-R Eca are standard installation wires insulated with PVC for 450/750V AC or 1kV DC. H07V-U Eca has a solid class 1 core, H07V-R Eca has a stranded class 2 core. H07V-U/R Eca is intended for protected fixed domestic and industrial installations. Installation may be in pipes or in closed gutters that are embedded in the wall or floor or on a surface. H07V-U/R Eca slides well and is therefore easy to pull into pipes. In addition, H07V-U/R Eca is easy to strip, making it quick to process. The wire can be loaded to a maximum wire temperature of 70°C. H07V-U Eca and H07V-R Eca comply with fire reaction class class Eca according to EN 50575. H07V-U Eca in sections 1.5 and 2.5 mm2 is also available in the moisture-resistant coloured VOBbox of length 100m.
