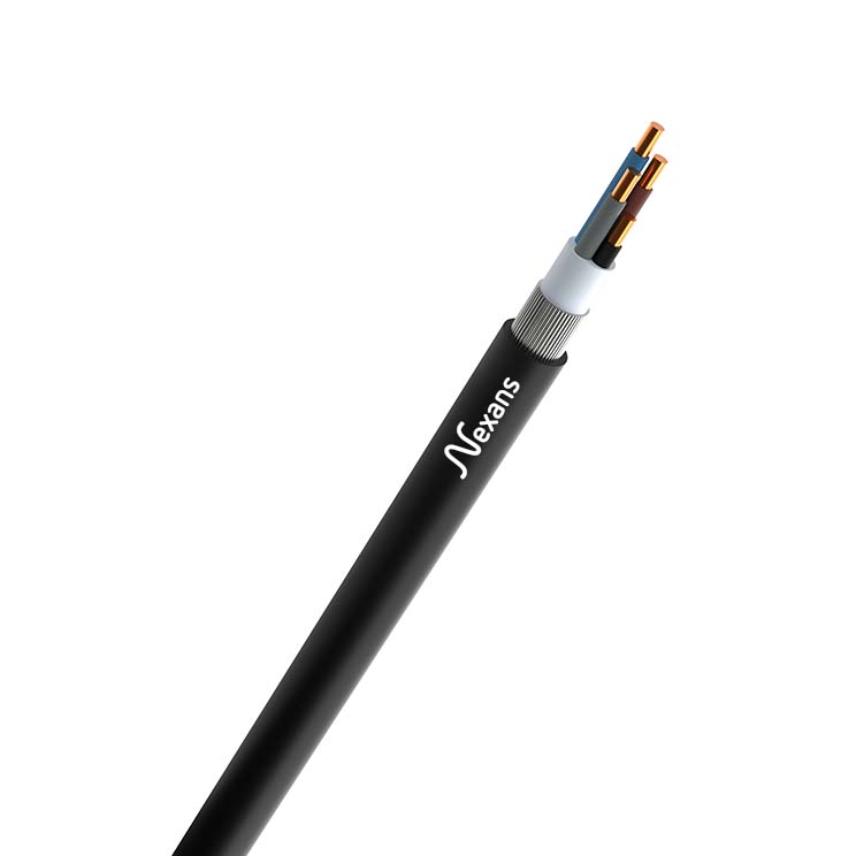

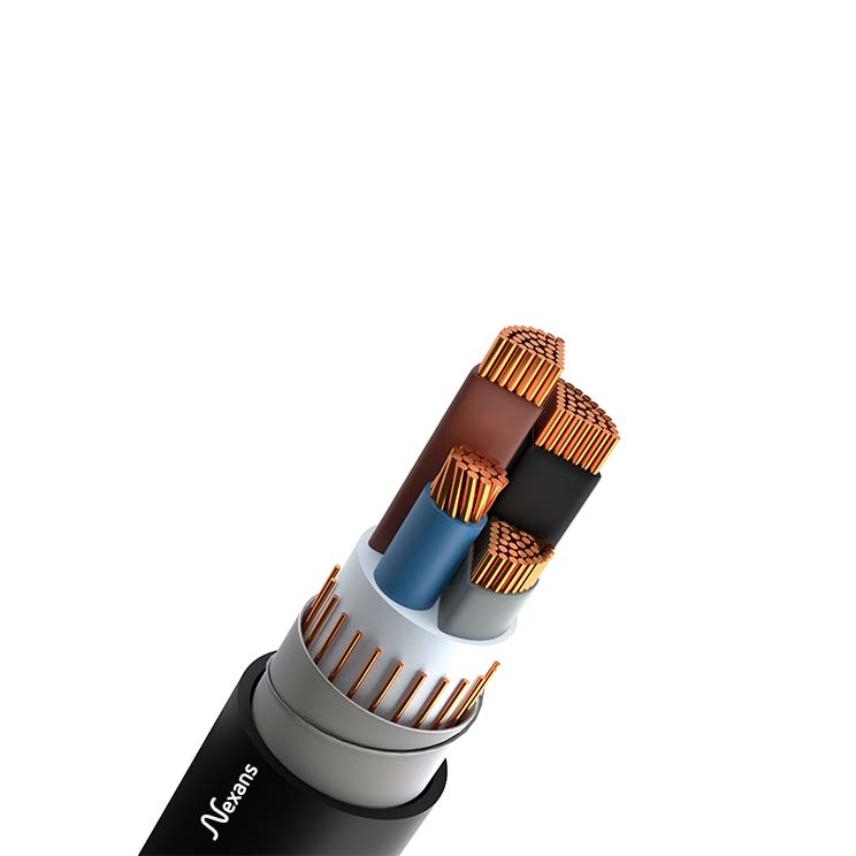

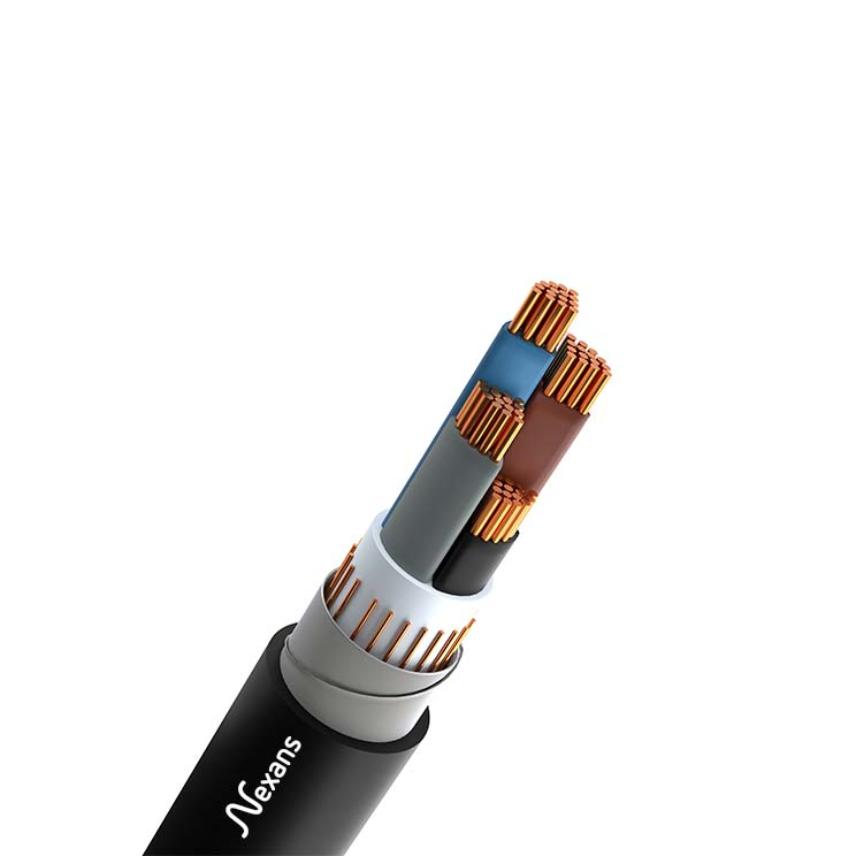

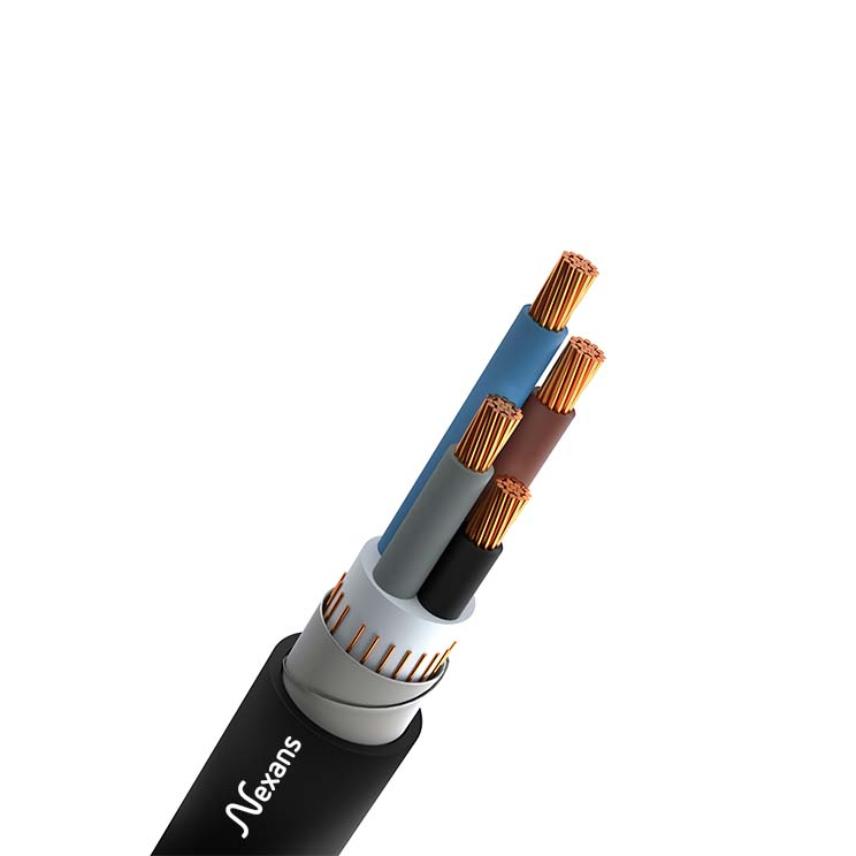

EXAVB Cca 1kV
EXAVB Cca 1kV
EXAVB Cca is an armoured energy cable for low voltage installations of 0.6/1kV presenting a risk of mechanical damage. The cable is UV resistant and may be installed above ground exposed to direct sunlight. EXAVB Cca may be laid directly in the ground without additional mechanical protection. The cable is suitable for use at ambient temperatures between -20°C and + 60°C. The safety circuit under the armour is suitable for grounding conductors up to 6mm2.
EXAVB Cca has fire class Cca-s3,d2,a3 according to EN 50575 and according to the AREI/RGIE may be installed in bundle or side by side and in areas with increased fire risk.
EXAV Cca 3x35+25
Nexans ref. 10539794
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 175 A
- Ohmical resistance of the armour: 1.35 Ohm/km
EXAV Cca 5G25
Nexans ref. 10557038
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 5
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 150 A
- Ohmical resistance of the armour: 1.6 Ohm/km
EXAV Cca 5x4
Nexans ref. 10542451
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 5
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 54 A
- Permissible current rating when buried: 50 A
- Ohmical resistance of the armour: 4.61 Ohm/km
EXAVB Cca 1x240 AC
Nexans ref. 10542450
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Two copper tapes
- Number of cores: 1
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 600 A
- Permissible current rating when buried: 543 A
- Ohmical resistance of the armour: 0.65 Ohm/km
EXAVB Cca 1x300 AC
Nexans ref. 10550898
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Two copper tapes
- Number of cores: 1
- Conductor cross-section: 300 mm²
- Permissible current rating in open air: 701 A
- Permissible current rating when buried: 625 A
- Ohmical resistance of the armour: 0.6 Ohm/km
EXAVB Cca 2x1.5
Nexans ref. 10538318
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 38 A
- Permissible current rating when buried: 26 A
- Ohmical resistance of the armour: 12.1 Ohm/km
EXAVB Cca 2x10
Nexans ref. 10538824
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 2
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 86 A
- Permissible current rating when buried: 100 A
- Ohmical resistance of the armour: 2.4 Ohm/km
EXAVB Cca 2x2.5
Nexans ref. 10538305
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 36 A
- Permissible current rating when buried: 50 A
- Ohmical resistance of the armour: 7.41 Ohm/km
EXAVB Cca 2x4
Nexans ref. 10538314
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 2
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 49 A
- Permissible current rating when buried: 65 A
- Ohmical resistance of the armour: 4.61 Ohm/km
EXAVB Cca 2x6
Nexans ref. 10538313
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 2
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 63 A
- Permissible current rating when buried: 76 A
- Ohmical resistance of the armour: 3.08 Ohm/km
EXAVB Cca 3G2.5
Nexans ref. 10538142
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Galvanized steel wires
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Permissible current rating when buried: 40 A
- Ohmical resistance of the armour: 7.41 Ohm/km
EXAVB Cca 3G25
Nexans ref. 10538827
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 150 A
- Ohmical resistance of the armour: 1.6 Ohm/km
EXAVB Cca 3G35
Nexans ref. 10538828
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 175 A
- Ohmical resistance of the armour: 1.35 Ohm/km
EXAVB Cca 3G50
Nexans ref. 10538829
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 192 A
- Permissible current rating when buried: 205 A
- Ohmical resistance of the armour: 1.15 Ohm/km
EXAVB Cca 3G6
Nexans ref. 10538823
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Galvanized steel wires
- Number of cores: 3
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Permissible current rating when buried: 65 A
- Ohmical resistance of the armour: 3.08 Ohm/km
EXAVB Cca 3x1.5
Nexans ref. 10538316
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Permissible current rating when buried: 30 A
- Ohmical resistance of the armour: 12.1 Ohm/km
EXAVB Cca 3x10
Nexans ref. 10538303
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 3
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Permissible current rating when buried: 90 A
- Ohmical resistance of the armour: 2.4 Ohm/km
EXAVB Cca 3x120
Nexans ref. 10538256
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 346 A
- Permissible current rating when buried: 360 A
- Ohmical resistance of the armour: 0.8 Ohm/km
EXAVB Cca 3x120+70
Nexans ref. 10538024
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 346 A
- Permissible current rating when buried: 360 A
- Ohmical resistance of the armour: 0.8 Ohm/km
EXAVB Cca 3x120+G70
Nexans ref. 10538399
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 346 A
- Permissible current rating when buried: 360 A
- Ohmical resistance of the armour: 0.8 Ohm/km
EXAVB Cca 3x150
Nexans ref. 10538288
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 399 A
- Permissible current rating when buried: 405 A
- Ohmical resistance of the armour: 0.75 Ohm/km
EXAVB Cca 3x150+70
Nexans ref. 10538245
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 399 A
- Permissible current rating when buried: 405 A
- Ohmical resistance of the armour: 0.75 Ohm/km
EXAVB Cca 3x150+G70
Nexans ref. 10538431
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 399 A
- Permissible current rating when buried: 405 A
- Ohmical resistance of the armour: 0.75 Ohm/km
EXAVB Cca 3x16
Nexans ref. 10538140
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: 100 A
- Permissible current rating when buried: 120 A
- Ohmical resistance of the armour: 2.0 Ohm/km
EXAVB Cca 3x185
Nexans ref. 10538014
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 456 A
- Permissible current rating when buried: 460 A
- Ohmical resistance of the armour: 0.7 Ohm/km
EXAVB Cca 3x185+95
Nexans ref. 10538016
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 456 A
- Permissible current rating when buried: 460 A
- Ohmical resistance of the armour: 0.7 Ohm/km
EXAVB Cca 3x185+G95
Nexans ref. 10538432
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 456 A
- Permissible current rating when buried: 460 A
- Ohmical resistance of the armour: 0.7 Ohm/km
EXAVB Cca 3x2.5
Nexans ref. 10538143
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Permissible current rating when buried: 40 A
- Ohmical resistance of the armour: 7.41 Ohm/km
EXAVB Cca 3x240
Nexans ref. 10538052
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 538 A
- Permissible current rating when buried: 530 A
- Ohmical resistance of the armour: 0.65 Ohm/km
EXAVB Cca 3x240+120
Nexans ref. 10538030
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 538 A
- Permissible current rating when buried: 530 A
- Ohmical resistance of the armour: 0.65 Ohm/km
EXAVB Cca 3x240+G120
Nexans ref. 10538434
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 538 A
- Permissible current rating when buried: 530 A
- Ohmical resistance of the armour: 0.65 Ohm/km
EXAVB Cca 3x25
Nexans ref. 10538289
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 150 A
- Ohmical resistance of the armour: 1.6 Ohm/km
EXAVB Cca 3x25+16
Nexans ref. 10538013
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 150 A
- Ohmical resistance of the armour: 1.6 Ohm/km
EXAVB Cca 3x25+G16
Nexans ref. 10538439
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 150 A
- Ohmical resistance of the armour: 1.6 Ohm/km
EXAVB Cca 3x35
Nexans ref. 10538246
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 175 A
- Ohmical resistance of the armour: 1.35 Ohm/km
EXAVB Cca 3x35+16
Nexans ref. 10538302
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 175 A
- Ohmical resistance of the armour: 1.35 Ohm/km
EXAVB Cca 3x35+G16
Nexans ref. 10538446
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 175 A
- Ohmical resistance of the armour: 1.35 Ohm/km
EXAVB Cca 3x4
Nexans ref. 10538315
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 3
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Permissible current rating when buried: 50 A
- Ohmical resistance of the armour: 4.61 Ohm/km
EXAVB Cca 3x50
Nexans ref. 10538300
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 192 A
- Permissible current rating when buried: 205 A
- Ohmical resistance of the armour: 1.15 Ohm/km
EXAVB Cca 3x50+1G25
Nexans ref. 10538301
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 192 A
- Permissible current rating when buried: 205 A
- Ohmical resistance of the armour: 1.15 Ohm/km
EXAVB Cca 3x50+25
Nexans ref. 10538463
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 192 A
- Permissible current rating when buried: 205 A
- Ohmical resistance of the armour: 1.15 Ohm/km
EXAVB Cca 3x6
Nexans ref. 10538317
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 3
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Permissible current rating when buried: 65 A
- Ohmical resistance of the armour: 3.08 Ohm/km
EXAVB Cca 3x70
Nexans ref. 10538255
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 246 A
- Permissible current rating when buried: 265 A
- Ohmical resistance of the armour: 1.0 Ohm/km
EXAVB Cca 3x70+35
Nexans ref. 10538443
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 246 A
- Permissible current rating when buried: 265 A
- Ohmical resistance of the armour: 1.0 Ohm/km
EXAVB Cca 3x70+G35
Nexans ref. 10538254
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 246 A
- Permissible current rating when buried: 265 A
- Ohmical resistance of the armour: 1.0 Ohm/km
EXAVB Cca 3x95
Nexans ref. 10538250
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 3
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 299 A
- Permissible current rating when buried: 315 A
- Ohmical resistance of the armour: 0.9 Ohm/km
EXAVB Cca 3x95+50
Nexans ref. 10538027
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 299 A
- Permissible current rating when buried: 315 A
- Ohmical resistance of the armour: 0.9 Ohm/km
EXAVB Cca 3x95+G50
Nexans ref. 10538430
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 299 A
- Permissible current rating when buried: 315 A
- Ohmical resistance of the armour: 0.9 Ohm/km
EXAVB Cca 4G10
Nexans ref. 10538253
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Galvanized steel wires
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Permissible current rating when buried: 90 A
- Ohmical resistance of the armour: 2.4 Ohm/km
EXAVB Cca 4G120
Nexans ref. 10538051
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 346 A
- Permissible current rating when buried: 360 A
- Ohmical resistance of the armour: 0.8 Ohm/km
EXAVB Cca 4G150
Nexans ref. 10538130
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 399 A
- Permissible current rating when buried: 405 A
- Ohmical resistance of the armour: 0.75 Ohm/km
EXAVB Cca 4G16
Nexans ref. 10538131
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: 100 A
- Permissible current rating when buried: 120 A
- Ohmical resistance of the armour: 2.0 Ohm/km
EXAVB Cca 4G185
Nexans ref. 10538053
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 456 A
- Permissible current rating when buried: 460 A
- Ohmical resistance of the armour: 0.7 Ohm/km
EXAVB Cca 4G2.5
Nexans ref. 10538312
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Galvanized steel wires
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Permissible current rating when buried: 40 A
- Ohmical resistance of the armour: 7.41 Ohm/km
EXAVB Cca 4G240
Nexans ref. 10538128
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 538 A
- Permissible current rating when buried: 530 A
- Ohmical resistance of the armour: 0.65 Ohm/km
EXAVB Cca 4G25
Nexans ref. 10538101
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 150 A
- Ohmical resistance of the armour: 1.6 Ohm/km
EXAVB Cca 4G35
Nexans ref. 10538055
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 175 A
- Ohmical resistance of the armour: 1.35 Ohm/km
EXAVB Cca 4G4
Nexans ref. 10538304
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Galvanized steel wires
- Number of cores: 4
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Permissible current rating when buried: 50 A
- Ohmical resistance of the armour: 4.61 Ohm/km
EXAVB Cca 4G50
Nexans ref. 10538129
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 192 A
- Permissible current rating when buried: 205 A
- Ohmical resistance of the armour: 1.15 Ohm/km
EXAVB Cca 4G6
Nexans ref. 10538146
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Galvanized steel wires
- Number of cores: 4
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Permissible current rating when buried: 65 A
- Ohmical resistance of the armour: 3.08 Ohm/km
EXAVB Cca 4G70
Nexans ref. 10538138
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 246 A
- Permissible current rating when buried: 265 A
- Ohmical resistance of the armour: 1.0 Ohm/km
EXAVB Cca 4G95
Nexans ref. 10538029
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 299 A
- Permissible current rating when buried: 315 A
- Ohmical resistance of the armour: 0.9 Ohm/km
EXAVB Cca 4x1.5
Nexans ref. 10538244
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Permissible current rating when buried: 30 A
- Ohmical resistance of the armour: 12.1 Ohm/km
EXAVB Cca 4x10
Nexans ref. 10537988
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Permissible current rating when buried: 90 A
- Ohmical resistance of the armour: 2.4 Ohm/km
EXAVB Cca 4x120
Nexans ref. 10538028
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 346 A
- Permissible current rating when buried: 360 A
- Ohmical resistance of the armour: 0.8 Ohm/km
EXAVB Cca 4x150
Nexans ref. 10538050
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 399 A
- Permissible current rating when buried: 405 A
- Ohmical resistance of the armour: 0.75 Ohm/km
EXAVB Cca 4x16
Nexans ref. 10537986
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: 100 A
- Permissible current rating when buried: 120 A
- Ohmical resistance of the armour: 2.0 Ohm/km
EXAVB Cca 4x185
Nexans ref. 10538031
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 456 A
- Permissible current rating when buried: 460 A
- Ohmical resistance of the armour: 0.7 Ohm/km
EXAVB Cca 4x2.5
Nexans ref. 10538145
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Permissible current rating when buried: 40 A
- Ohmical resistance of the armour: 7.41 Ohm/km
EXAVB Cca 4x240
Nexans ref. 10538010
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 538 A
- Permissible current rating when buried: 530 A
- Ohmical resistance of the armour: 0.65 Ohm/km
EXAVB Cca 4x25
Nexans ref. 10538025
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 150 A
- Ohmical resistance of the armour: 1.6 Ohm/km
EXAVB Cca 4x35
Nexans ref. 10538032
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 175 A
- Ohmical resistance of the armour: 1.35 Ohm/km
EXAVB Cca 4x4
Nexans ref. 10538141
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 4
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Permissible current rating when buried: 50 A
- Ohmical resistance of the armour: 4.61 Ohm/km
EXAVB Cca 4x50
Nexans ref. 10538100
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 192 A
- Permissible current rating when buried: 205 A
- Ohmical resistance of the armour: 1.15 Ohm/km
EXAVB Cca 4x6
Nexans ref. 10538139
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Galvanized steel wires
- Number of cores: 4
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Permissible current rating when buried: 65 A
- Ohmical resistance of the armour: 3.08 Ohm/km
EXAVB Cca 4x70
Nexans ref. 10538056
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 246 A
- Permissible current rating when buried: 265 A
- Ohmical resistance of the armour: 1.0 Ohm/km
EXAVB Cca 4x95
Nexans ref. 10538015
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Armour type: Steel tapes
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 299 A
- Permissible current rating when buried: 315 A
- Ohmical resistance of the armour: 0.9 Ohm/km
Description
Description
Standards
-
NationalNBN HD 603 Part 6/Sect.E
Design
- Copper core solid ( Class 1) or stranded (Class 2)
- XLPE insulation (X)
- Safety circuit with copper wires (*)
- Steel tapes or wires (A) (**)
- PVC sheath (V) - Colour: Black
(*) Suitable for earth for conductors till 6 mm²
(**) exception: the armour of single core cables for AC applications is made of a non magnetic metal, i.c. copper
Core identification
- 2 x : blue, brown
- 3 x : brown, black, grey
- 3 G : green/yellow, blue, brown
- 3 + 1 x : brown, black, grey + blue
- 3 + 1 G : brown, black, grey + green/yellow
- 4 x : blue, brown, black, grey
- 4 G : green/yellow, brown, black, grey
Installation
- In cable channel
- In tube
- Underground laying with or without protection
- In open air
- In industry or houses
Minimum Installation & Operating Temperature
Provided the conditions explained hereunder are respected, cables can be installed and operated at low temperatures down to -20°C:
Minimum Temperature during Installation
Ideally, the cable should not be installed at an ambient temperature below 5°C. If this is not possible, the cable must be kept in a heated room of at least 20°C for 24 hours. During installation, the temperature of the sheathing must be properly monitored. If it cools down too much (below 5°C), it must be warmed up again.
Minimum Temperature during operation
The cable can operate at a minimum ambient temperature of -20°C, provided the following conditions are met:
- the procedure for minimum temperature during installation has been respected
- the cable has been laid according to the rules of good practice and the bending radius has been scrupulously respected during installation
- the cable must not move at all after installation: no repositioning and certainly no exposure to vibrations.
Maximum pulling force
The Construction Standard NBN HD 603 defines the maximum pulling force allowed by a pulling head attached to the copper conductors as follows:
Max. pulling force P = S mm² x 50 N/mm²
where S is the sum of the nominal cross-section of all conductors.
The armouring shall not be considered in this calculation.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Insulation
XLPE (chemical)
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Test voltage
4 kV
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Rigid
Mechanical resistance to impacts
Excellent
Usage characteristics
Usage characteristics
Bending factor when laying
15 (xD)
Field of application
Indoor, Outdoor, Underground
Max. conductor temperature in service
90 °C
Operating temperature, range
-20 ... 80 °C
Minimum installation temperature
5 °C
Resistance to vibrations
Moderate
Chemical resistance
Medium
Water proof
Water splattering
Packaging
Cut to length
Resources
Resources
Selling & delivery Information
- Other dimensions available upon request
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
