HVCRC CABLES (High Voltage Composite Reinforced Conductors)
HVCRC CABLES (High Voltage Composite Reinforced Conductors)

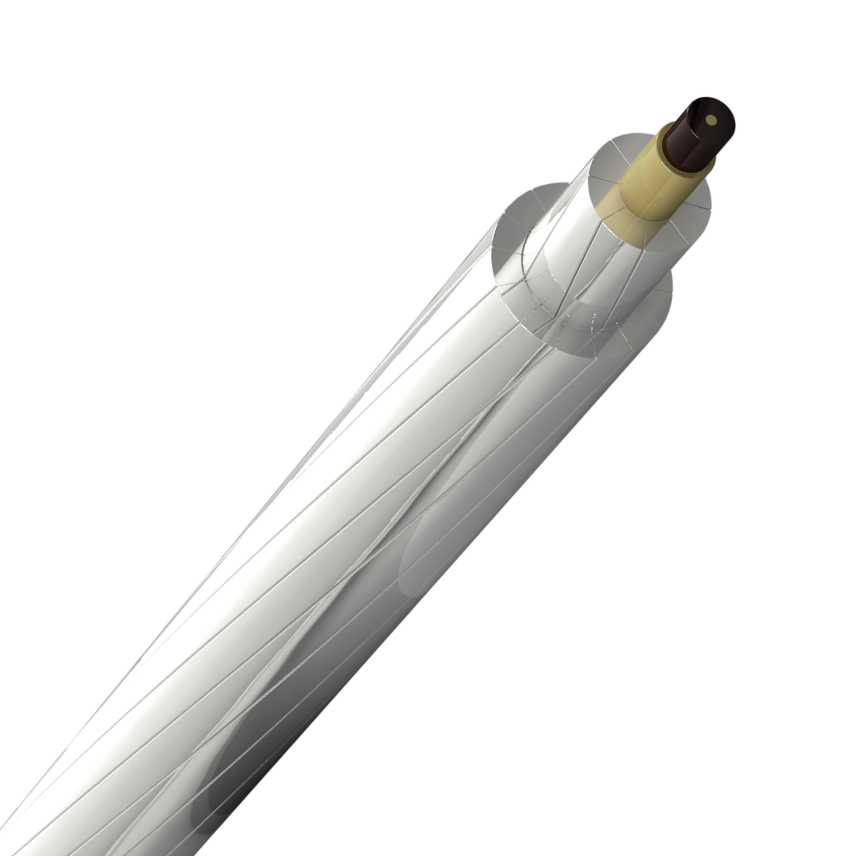

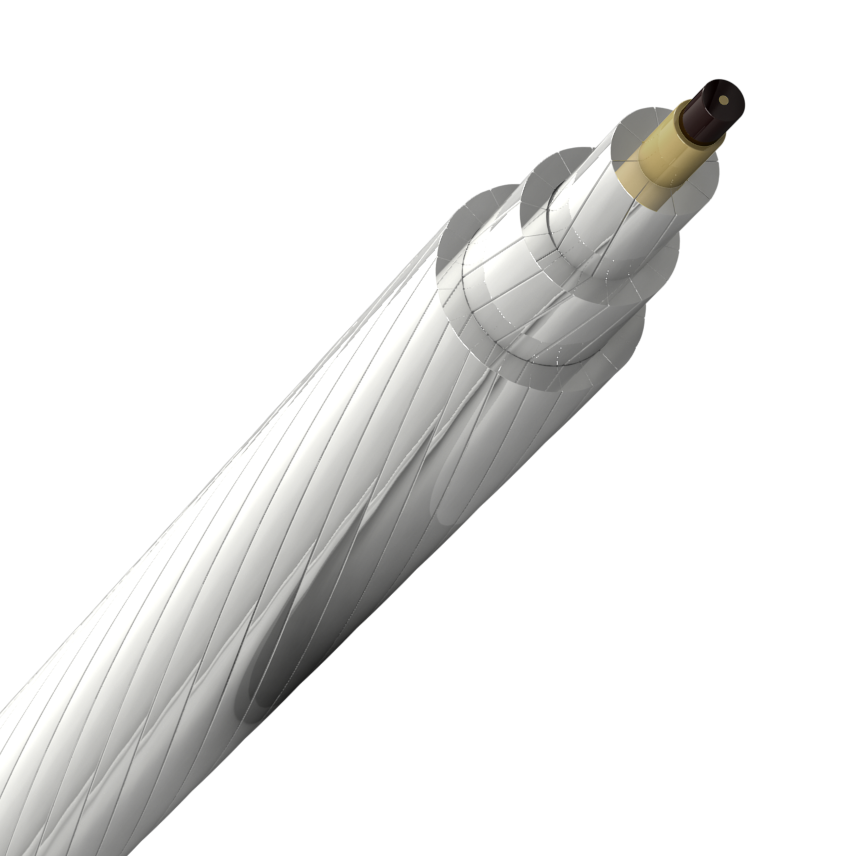

High-conductivity aluminum conductors made in trapezoidal wires, with a hybrid carbon and glass core that allows operation at high temperatures and low SAG (HTLS).
Read moreAMSTERDAM
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 369 mm²
- Conductor diameter: 23.55 mm
- Linear weight: 1107.3 kg/km
- Ampacity 180°C: 1461 A
- Max. DC resistance of the conductor at 20°C: 0.076 Ohm/km
- Nominal Tensile Strength Core: 128 kN
- Maximum operating temperature (cables): 194 °C
ANTWERP
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 944 mm²
- Conductor diameter: 36.9 mm
- Linear weight: 2751 kg/km
- Ampacity 180°C: 2675 A
- Max. DC resistance of the conductor at 20°C: 0.03 Ohm/km
- Nominal Tensile Strength Core: 225.2 kN
- Maximum operating temperature (cables): 211 °C
BERN
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 159 mm²
- Conductor diameter: 15.5 mm
- Linear weight: 473.8 kg/km
- Ampacity 180°C: 843 A
- Max. DC resistance of the conductor at 20°C: 0.176 Ohm/km
- Nominal Tensile Strength Core: 48.5 kN
- Maximum operating temperature (cables): 183 °C
BORDEAUX
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 874 mm²
- Conductor diameter: 35.76 mm
- Linear weight: 2579.1 kg/km
- Ampacity 180°C: 2556 A
- Max. DC resistance of the conductor at 20°C: 0.032 Ohm/km
- Nominal Tensile Strength Core: 248.2 kN
- Maximum operating temperature (cables): 210 °C
BRUSSELS
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 422 mm²
- Conductor diameter: 25.13 mm
- Linear weight: 1262 kg/km
- Ampacity 180°C: 1595 A
- Max. DC resistance of the conductor at 20°C: 0.066 Ohm/km
- Nominal Tensile Strength Core: 141.8 kN
- Maximum operating temperature (cables): 196 °C
BUDAPEST
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 670 mm²
- Conductor diameter: 31.49 mm
- Linear weight: 1988 kg/km
- Ampacity 180°C: 2154 A
- Max. DC resistance of the conductor at 20°C: 0.042 Ohm/km
- Nominal Tensile Strength Core: 200.3 kN
- Maximum operating temperature (cables): 204 °C
CASABLANCA
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 276 mm²
- Conductor diameter: 20.51 mm
- Linear weight: 835.5 kg/km
- Ampacity 180°C: 1210 A
- Max. DC resistance of the conductor at 20°C: 0.102 Ohm/km
- Nominal Tensile Strength Core: 105.6 kN
- Maximum operating temperature (cables): 191 °C
COPENHAGEN
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 221 mm²
- Conductor diameter: 18.29 mm
- Linear weight: 663.8 kg/km
- Ampacity 180°C: 1046 A
- Max. DC resistance of the conductor at 20°C: 0.127 Ohm/km
- Nominal Tensile Strength Core: 731 kN
- Maximum operating temperature (cables): 186 °C
CORDOBA
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 400 mm²
- Conductor diameter: 24.43 mm
- Linear weight: 1194 kg/km
- Ampacity 180°C: 1539 A
- Max. DC resistance of the conductor at 20°C: 0.07 Ohm/km
- Nominal Tensile Strength Core: 129.9 kN
- Maximum operating temperature (cables): 195 °C
DUBLIN
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 525 mm²
- Conductor diameter: 28.17 mm
- Linear weight: 1583 kg/km
- Ampacity 180°C: 1844 A
- Max. DC resistance of the conductor at 20°C: 0.053 Ohm/km
- Nominal Tensile Strength Core: 1915 kN
- Maximum operating temperature (cables): 199 °C
GDANSK
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 248 mm²
- Conductor diameter: 19.21 mm
- Linear weight: 735.8 kg/km
- Ampacity 180°C: 1123 A
- Max. DC resistance of the conductor at 20°C: 0.113 Ohm/km
- Nominal Tensile Strength Core: 747 kN
- Maximum operating temperature (cables): 190 °C
GLASGOW
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 238 mm²
- Conductor diameter: 19.55 mm
- Linear weight: 746.3 kg/km
- Ampacity 180°C: 1108 A
- Max. DC resistance of the conductor at 20°C: 0.118 Ohm/km
- Nominal Tensile Strength Core: 120.1 kN
- Maximum operating temperature (cables): 189 °C
HAMBURG
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 552 mm²
- Conductor diameter: 28.62 mm
- Linear weight: 1638.5 kg/km
- Ampacity 180°C: 1898 A
- Max. DC resistance of the conductor at 20°C: 0.051 Ohm/km
- Nominal Tensile Strength Core: 168.3 kN
- Maximum operating temperature (cables): 200 °C
HELSINKI
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 153 mm²
- Conductor diameter: 15.65 mm
- Linear weight: 473.8 kg/km
- Ampacity 180°C: 827 A
- Max. DC resistance of the conductor at 20°C: 0.184 Ohm/km
- Nominal Tensile Strength Core: 69 kN
- Maximum operating temperature (cables): 181 °C
JAIPUR
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 154 mm²
- Conductor diameter: 16.51 mm
- Linear weight: 513.2 kg/km
- Ampacity 180°C: 844 A
- Max. DC resistance of the conductor at 20°C: 0.182 Ohm/km
- Nominal Tensile Strength Core: 115.1 kN
- Maximum operating temperature (cables): 182 °C
LISBON
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 317 mm²
- Conductor diameter: 21.79 mm
- Linear weight: 949.5 kg/km
- Ampacity 180°C: 1322 A
- Max. DC resistance of the conductor at 20°C: 0.088 Ohm/km
- Nominal Tensile Strength Core: 108.1 kN
- Maximum operating temperature (cables): 193 °C
LONDON
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 762 mm²
- Conductor diameter: 33.42 mm
- Linear weight: 2248 kg/km
- Ampacity 180°C: 2337 A
- Max. DC resistance of the conductor at 20°C: 0.037 Ohm/km
- Nominal Tensile Strength Core: 214.3 kN
- Maximum operating temperature (cables): 208 °C
MADRID
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: - mm²
- Conductor diameter: 38.18 mm
- Linear weight: 2944 kg/km
- Ampacity 180°C: 2796 A
- Max. DC resistance of the conductor at 20°C: 0.028 Ohm/km
- Nominal Tensile Strength Core: 229.3 kN
- Maximum operating temperature (cables): 212 °C
MILAN
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 573 mm²
- Conductor diameter: 29.1 mm
- Linear weight: 1696.5 kg/km
- Ampacity 180°C: 1943 A
- Max. DC resistance of the conductor at 20°C: 0.049 Ohm/km
- Nominal Tensile Strength Core: 169.6 kN
- Maximum operating temperature (cables): 201 °C
MONTE CARLO
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 229 mm²
- Conductor diameter: 20.78 mm
- Linear weight: 796.6 kg/km
- Ampacity 180°C: 1107 A
- Max. DC resistance of the conductor at 20°C: 0.123 Ohm/km
- Nominal Tensile Strength Core: 209.5 kN
- Maximum operating temperature (cables): 188 °C
MUNICH
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 738 mm²
- Conductor diameter: 32.87 mm
- Linear weight: 2174 kg/km
- Ampacity 180°C: 2288 A
- Max. DC resistance of the conductor at 20°C: 0.038 Ohm/km
- Nominal Tensile Strength Core: 204.3 kN
- Maximum operating temperature (cables): 206 °C
OSLO
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 315 mm²
- Conductor diameter: 22.4 mm
- Linear weight: 983.5 kg/km
- Ampacity 180°C: 1330 A
- Max. DC resistance of the conductor at 20°C: 0.089 Ohm/km
- Nominal Tensile Strength Core: 154.1 kN
- Maximum operating temperature (cables): 192 °C
PARIS
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 815 mm²
- Conductor diameter: 34.2 mm
- Linear weight: 2366.5 kg/km
- Ampacity 180°C: 2432 A
- Max. DC resistance of the conductor at 20°C: 0.034 Ohm/km
- Nominal Tensile Strength Core: 184.1 kN
- Maximum operating temperature (cables): 209 °C
PRAGUE
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 696 mm²
- Conductor diameter: 31.8 mm
- Linear weight: 2037.5 kg/km
- Ampacity 180°C: 2200 A
- Max. DC resistance of the conductor at 20°C: 0.04 Ohm/km
- Nominal Tensile Strength Core: 177 kN
- Maximum operating temperature (cables): 205 °C
REYKJAVIK
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 223 mm²
- Conductor diameter: 18.82 mm
- Linear weight: 690.8 kg/km
- Ampacity 180°C: 1060 A
- Max. DC resistance of the conductor at 20°C: 0.126 Ohm/km
- Nominal Tensile Strength Core: 102.5 kN
- Maximum operating temperature (cables): 187 °C
ROME
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 595 mm²
- Conductor diameter: 29.87 mm
- Linear weight: 1779 kg/km
- Ampacity 180°C: 1998 A
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- Nominal Tensile Strength Core: 195.8 kN
- Maximum operating temperature (cables): 202 °C
ROVINJ
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 189 mm²
- Conductor diameter: 17.09 mm
- Linear weight: 574.9 kg/km
- Ampacity 180°C: 946 A
- Max. DC resistance of the conductor at 20°C: 0.148 Ohm/km
- Nominal Tensile Strength Core: 71.2 kN
- Maximum operating temperature (cables): 185 °C
SILVASSA
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 123 mm²
- Conductor diameter: 14.35 mm
- Linear weight: 391.8 kg/km
- Ampacity 180°C: 723 A
- Max. DC resistance of the conductor at 20°C: 0.2277 Ohm/km
- Nominal Tensile Strength Core: 67.2 kN
- Maximum operating temperature (cables): 180 °C
STOCKHOLM
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 463 mm²
- Conductor diameter: 26.4 mm
- Linear weight: 1392.5 kg/km
- Ampacity 180°C: 1698 A
- Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
- Nominal Tensile Strength Core: 163 kN
- Maximum operating temperature (cables): 197 °C
VIENNA
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 630 mm²
- Conductor diameter: 30.42 mm
- Linear weight: 1857.5 kg/km
- Ampacity 180°C: 2066 A
- Max. DC resistance of the conductor at 20°C: 0.044 Ohm/km
- Nominal Tensile Strength Core: 173.1 kN
- Maximum operating temperature (cables): 203 °C
WARSAW
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 513 mm²
- Conductor diameter: 27.72 mm
- Linear weight: 1532.5 kg/km
- Ampacity 180°C: 1813 A
- Max. DC resistance of the conductor at 20°C: 0.055 Ohm/km
- Nominal Tensile Strength Core: 166 kN
- Maximum operating temperature (cables): 198 °C
WARWICK
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 751 mm²
- Conductor diameter: 33.4 mm
- Linear weight: 2235.9 kg/km
- Ampacity 180°C: 2321 A
- Max. DC resistance of the conductor at 20°C: 0.037 Ohm/km
- Nominal Tensile Strength Core: 240.8 kN
- Maximum operating temperature (cables): 207 °C
ZADAR
Nexans ref.
- Packaging: Drum
- Aluminium cross-section: 178 mm²
- Conductor diameter: 17.09 mm
- Linear weight: 564.9 kg/km
- Ampacity 180°C: 917 A
- Max. DC resistance of the conductor at 20°C: 0.158 Ohm/km
- Nominal Tensile Strength Core: 99.7 kN
- Maximum operating temperature (cables): 184 °C
Description
Description
Construction
HVCRC cables are designed to improve the current capacity of the line, reduce sag and electrical losses and are used in overhead lines for the transmission of electrical energy. Additionally, they are an excellent alternative for transmission line repowering projects.
Conductor made of trapezoidal wires of high-conductivity annealed aluminum alloy 1350-O, stranded on a carbon and glass fiber core embedded in a high-temperature thermoset resin.
Reference standards and certificates
Standards
- ASTM B987
- ASTM B857
- C 62219
Temperature
- 180°C, Continous operating.
- 200°C, Emergency by 8760 Hours.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Stranded
Conductor material
Aluminum / Composite Core
Conductor shape
Compact Stranded (trapezoidal wires)
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Usage characteristics
Usage characteristics
Packaging
Drum
Resources
Resources
Selling & delivery Information
Packaging
Wooden Reels.
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
