Nexans H07RN-F TITANEX®

Products

Nexans H07RN-F TITANEX 1x120

Nexans ref. 10229546 - Country ref. 10055592

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No
  • Number of cores: 1
  • Conductor cross-section: 120 mm²
  • Average insulation thickness: 1.8 mm
  • Approximate weight: 1430 kg/km
  • Maximum outer diameter: 28.6 mm
  • Minimum outer diameter: 22.8 mm



Nexans H07RN-F TITANEX 1x240

Nexans ref. 10229547 - Country ref. 10055636

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No
  • Number of cores: 1
  • Conductor cross-section: 240 mm²
  • Average insulation thickness: 2.4 mm
  • Approximate weight: 2730 kg/km
  • Maximum outer diameter: 38.3 mm
  • Minimum outer diameter: 30.6 mm



Nexans H07RN-F TITANEX 1x35

Nexans ref. 10229545 - Country ref. 10055586

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No
  • Number of cores: 1
  • Conductor cross-section: 35 mm²
  • Average insulation thickness: 1.4 mm
  • Approximate weight: 482 kg/km
  • Maximum outer diameter: 17.9 mm
  • Minimum outer diameter: 14.3 mm



Nexans H07RN-F TITANEX 2X1,5 100m

Nexans ref. 10229549 - Country ref. 10055508

  • Packaging: m
  • With Green/Yellow core: No
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Average insulation thickness: 0.8 mm
  • Approximate weight: 111 kg/km
  • Maximum outer diameter: 11.0 mm
  • Minimum outer diameter: 8.5 mm



Nexans H07RN-F TITANEX 2x1.5

Nexans ref. 10229550 - Country ref. 10055509

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Average insulation thickness: 0.8 mm
  • Approximate weight: 111 kg/km
  • Maximum outer diameter: 11.0 mm
  • Minimum outer diameter: 8.5 mm



Nexans H07RN-F TITANEX 2x2,5

Nexans ref. 10233816 - Country ref. 10055514

  • Packaging: Cut to length (m)
  • With Green/Yellow core: No
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Average insulation thickness: 0.9 mm
  • Approximate weight: 161 kg/km
  • Maximum outer diameter: 13.2 mm
  • Minimum outer diameter: 10.2 mm



Nexans H07RN-F TITANEX 3G1,5 C100m

Nexans ref. 10229743 - Country ref. 10055522

  • Packaging: m
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Average insulation thickness: 0.8 mm
  • Approximate weight: 134 kg/km
  • Maximum outer diameter: 11.9 mm
  • Minimum outer diameter: 10.2 mm



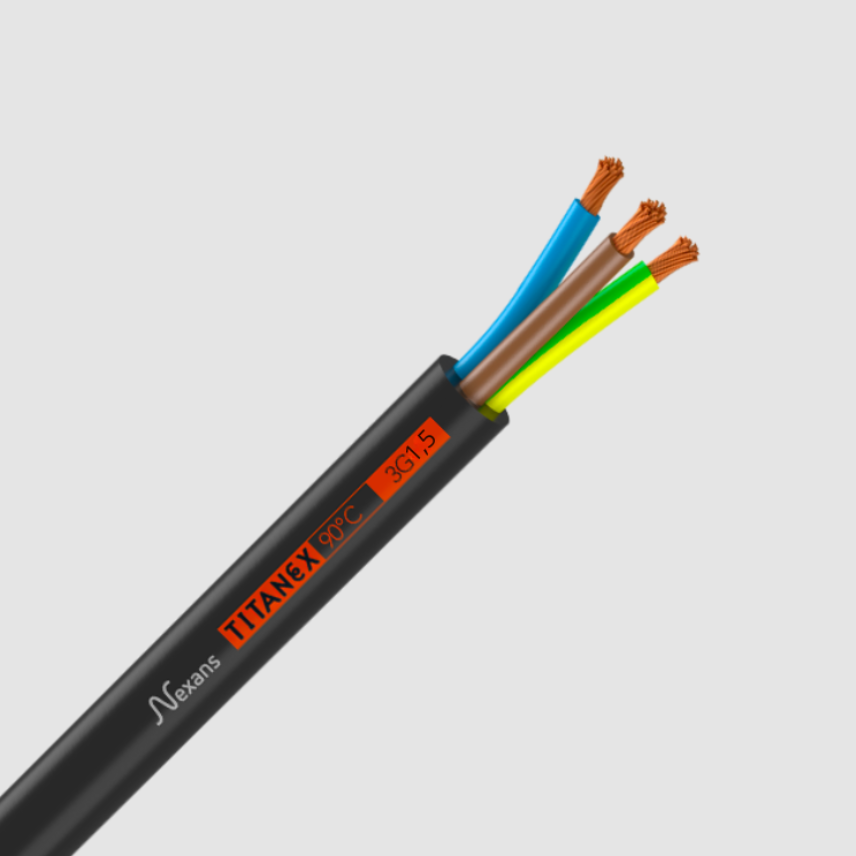

Nexans H07RN-F TITANEX 3G1.5

Nexans ref. 10229742 - Country ref. 10055523

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Average insulation thickness: 0.8 mm
  • Approximate weight: 134 kg/km
  • Maximum outer diameter: 11.9 mm
  • Minimum outer diameter: 9.2 mm



Nexans H07RN-F TITANEX 3G2,5 100m

Nexans ref. 10229766 - Country ref. 10055528

  • Packaging: m
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Average insulation thickness: 0.9 mm
  • Approximate weight: 195 kg/km
  • Maximum outer diameter: 14.0 mm
  • Minimum outer diameter: 12.5 mm



Nexans H07RN-F TITANEX 3G2.5

Nexans ref. 10229764 - Country ref. 10055530

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Average insulation thickness: 0.9 mm
  • Approximate weight: 195 kg/km
  • Maximum outer diameter: 14.0 mm
  • Minimum outer diameter: 10.9 mm



Nexans H07RN-F TITANEX 3G4

Nexans ref. 10229767 - Country ref. 10055535

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Average insulation thickness: 1.0 mm
  • Approximate weight: 290 kg/km
  • Maximum outer diameter: 16.2 mm
  • Minimum outer diameter: 12.7 mm



Nexans H07RN-F TITANEX 3G4 C100m

Nexans ref. 10229768 - Country ref. 10056057

  • Packaging: Coil (100m)
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Average insulation thickness: 1.0 mm
  • Approximate weight: 290 kg/km
  • Maximum outer diameter: 16.2 mm
  • Minimum outer diameter: 12.7 mm



Nexans H07RN-F TITANEX 3G6

Nexans ref. 10229769 - Country ref. 10055537

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Average insulation thickness: 1.0 mm
  • Approximate weight: 346 kg/km
  • Maximum outer diameter: 18.0 mm
  • Minimum outer diameter: 14.1 mm



Nexans H07RN-F TITANEX 3G6 C100m

Nexans ref. 10229770 - Country ref. 10056033

  • Packaging: Coil (100m)
  • With Green/Yellow core: Yes
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Average insulation thickness: 1.0 mm
  • Approximate weight: 346 kg/km
  • Maximum outer diameter: 18.0 mm
  • Minimum outer diameter: 14.1 mm



Nexans H07RN-F TITANEX 4G1,5 100m

Nexans ref. 10229772 - Country ref. 10055540

  • Packaging: m
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Average insulation thickness: 0.8 mm
  • Approximate weight: 165 kg/km
  • Maximum outer diameter: 13.1 mm
  • Minimum outer diameter: 10.2 mm



Nexans H07RN-F TITANEX 4G1.5

Nexans ref. 10229771 - Country ref. 10055541

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Average insulation thickness: 0.8 mm
  • Approximate weight: 165 kg/km
  • Maximum outer diameter: 13.1 mm
  • Minimum outer diameter: 10.2 mm



Nexans H07RN-F TITANEX 4G10

Nexans ref. 10229777 - Country ref. 10055555

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 10 mm²
  • Average insulation thickness: 1.2 mm
  • Approximate weight: 818 kg/km
  • Maximum outer diameter: 26.5 mm
  • Minimum outer diameter: 20.8 mm



Nexans H07RN-F TITANEX 4G16

Nexans ref. 10229778 - Country ref. 10055558

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 16 mm²
  • Average insulation thickness: 1.2 mm
  • Approximate weight: 1150 kg/km
  • Maximum outer diameter: 30.1 mm
  • Minimum outer diameter: 23.8 mm



Nexans H07RN-F TITANEX 4G2,5 100m

Nexans ref. 10229774 - Country ref. 10055545

  • Packaging: m
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Average insulation thickness: 0.9 mm
  • Approximate weight: 245 kg/km
  • Maximum outer diameter: 15.5 mm
  • Minimum outer diameter: 12.5 mm



Nexans H07RN-F TITANEX 4G2.5

Nexans ref. 10229773 - Country ref. 10055547

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Average insulation thickness: 0.9 mm
  • Approximate weight: 245 kg/km
  • Maximum outer diameter: 15.5 mm
  • Minimum outer diameter: 12.5 mm



Nexans H07RN-F TITANEX 4G25

Nexans ref. 10229779 - Country ref. 10055594

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 25 mm²
  • Average insulation thickness: 1.4 mm
  • Approximate weight: 1700 kg/km
  • Maximum outer diameter: 36.6 mm
  • Minimum outer diameter: 28.9 mm



Nexans H07RN-F TITANEX 4G35

Nexans ref. 10229780 - Country ref. 10055573

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 35 mm²
  • Average insulation thickness: 1.4 mm
  • Approximate weight: 2180 kg/km
  • Maximum outer diameter: 41.1 mm
  • Minimum outer diameter: 32.5 mm



Nexans H07RN-F TITANEX 4G4

Nexans ref. 10229775 - Country ref. 10055551

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Average insulation thickness: 1.0 mm
  • Approximate weight: 357 kg/km
  • Maximum outer diameter: 18.0 mm
  • Minimum outer diameter: 14.0 mm



Nexans H07RN-F TITANEX 4G50

Nexans ref. 10229781 - Country ref. 10055560

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 50 mm²
  • Average insulation thickness: 1.6 mm
  • Approximate weight: 3030 kg/km
  • Maximum outer diameter: 47.5 mm
  • Minimum outer diameter: 37.7 mm



Nexans H07RN-F TITANEX 4G6

Nexans ref. 10229776 - Country ref. 10055574

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 6 mm²
  • Average insulation thickness: 1.0 mm
  • Approximate weight: 443 kg/km
  • Maximum outer diameter: 20.0 mm
  • Minimum outer diameter: 15.7 mm



Nexans H07RN-F TITANEX 4G70

Nexans ref. 10229782 - Country ref. 10055653

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 4
  • Conductor cross-section: 70 mm²
  • Average insulation thickness: 1.6 mm
  • Approximate weight: 3990 kg/km
  • Maximum outer diameter: 54.0 mm
  • Minimum outer diameter: 42.7 mm



Nexans H07RN-F TITANEX 5G1,5 C100m

Nexans ref. 10229784 - Country ref. 10055562

  • Packaging: Coil (m)
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 1.5 mm²
  • Average insulation thickness: 0.8 mm
  • Approximate weight: 238 kg/km
  • Maximum outer diameter: 14.4 mm
  • Minimum outer diameter: 11.2 mm



Nexans H07RN-F TITANEX 5G1.5

Nexans ref. 10229783 - Country ref. 10055564

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 1.5 mm²
  • Average insulation thickness: 0.8 mm
  • Approximate weight: 238 kg/km
  • Maximum outer diameter: 14.4 mm
  • Minimum outer diameter: 11.2 mm



Nexans H07RN-F TITANEX 5G10

Nexans ref. 10229793 - Country ref. 10055602

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 10 mm²
  • Average insulation thickness: 1.2 mm
  • Approximate weight: 1001 kg/km
  • Maximum outer diameter: 29.1 mm
  • Minimum outer diameter: 22.9 mm



Nexans H07RN-F TITANEX 5G16

Nexans ref. 10229794 - Country ref. 10055605

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 16 mm²
  • Average insulation thickness: 1.2 mm
  • Approximate weight: 1430 kg/km
  • Maximum outer diameter: 33.3 mm
  • Minimum outer diameter: 26.4 mm



Nexans H07RN-F TITANEX 5G2,5 100m

Nexans ref. 10229786 - Country ref. 10055568

  • Packaging: m
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Average insulation thickness: 0.9 mm
  • Approximate weight: 297 kg/km
  • Maximum outer diameter: 17.0 mm
  • Minimum outer diameter: 13.3 mm



Nexans H07RN-F TITANEX 5G2.5

Nexans ref. 10229785 - Country ref. 10055571

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Average insulation thickness: 0.9 mm
  • Approximate weight: 297 kg/km
  • Maximum outer diameter: 17.0 mm
  • Minimum outer diameter: 13.3 mm



Nexans H07RN-F TITANEX 5G25

Nexans ref. 10229795 - Country ref. 10055627

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 25 mm²
  • Average insulation thickness: 1.4 mm
  • Approximate weight: 2096 kg/km
  • Maximum outer diameter: 40.4 mm
  • Minimum outer diameter: 32.0 mm



Nexans H07RN-F TITANEX 5G35

Nexans ref. 10229796 - Country ref. 10055506

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 35 mm²
  • Average insulation thickness: 1.4 mm
  • Approximate weight: 2690 kg/km
  • Maximum outer diameter: 45.1 mm
  • Minimum outer diameter: 35.6 mm



Nexans H07RN-F TITANEX 5G4

Nexans ref. 10229787 - Country ref. 10055597

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Average insulation thickness: 1.0 mm
  • Approximate weight: 453 kg/km
  • Maximum outer diameter: 19.9 mm
  • Minimum outer diameter: 15.6 mm



Nexans H07RN-F TITANEX 5G4 C100m

Nexans ref. 10229789 - Country ref. 10056037

  • Packaging: Coil (100m)
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Average insulation thickness: 1.0 mm
  • Approximate weight: 453 kg/km
  • Maximum outer diameter: 19.9 mm
  • Minimum outer diameter: 15.6 mm



Nexans H07RN-F TITANEX 5G4 C50m

Nexans ref. 10229788 - Country ref. 10055596

  • Packaging: Coil (50m)
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Average insulation thickness: 1.0 mm
  • Approximate weight: 453 kg/km
  • Maximum outer diameter: 19.9 mm
  • Minimum outer diameter: 15.6 mm



Nexans H07RN-F TITANEX 5G6

Nexans ref. 10229791 - Country ref. 10055600

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 6 mm²
  • Average insulation thickness: 1.0 mm
  • Approximate weight: 557 kg/km
  • Maximum outer diameter: 22.2 mm
  • Minimum outer diameter: 17.5 mm



Nexans H07RN-F TITANEX 5G6 C50m

Nexans ref. 10229792 - Country ref. 10055795

  • Packaging: Coil (50m)
  • With Green/Yellow core: Yes
  • Number of cores: 5
  • Conductor cross-section: 6 mm²
  • Average insulation thickness: - mm
  • Approximate weight: 557 kg/km
  • Maximum outer diameter: 22.2 mm
  • Minimum outer diameter: 17.5 mm



Nexans H07RN-F TITANEX 7G1.5

Nexans ref. 10229798 - Country ref. 10055577

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 7
  • Conductor cross-section: 1.5 mm²
  • Average insulation thickness: 0.8 mm
  • Approximate weight: 349 kg/km
  • Maximum outer diameter: 18.7 mm
  • Minimum outer diameter: 14.7 mm



Nexans H07RN-F TITANEX 7G2.5

Nexans ref. 10229799 - Country ref. 10055609

  • Packaging: Cut to length (m)
  • With Green/Yellow core: Yes
  • Number of cores: 7
  • Conductor cross-section: 2.5 mm²
  • Average insulation thickness: 0.9 mm
  • Approximate weight: 487 kg/km
  • Maximum outer diameter: 21.8 mm
  • Minimum outer diameter: 17.1 mm



Description

Description

Standards

  • Product
    2014/68/EU; EN 50525-2-21; HD 516; IEC 60245-4 type 66
  • International
    EU Directive 2011/65/EU (RoHS)

Advantages

  • Very high flexibility
  • Very high crush resistance
  • Good resistance to chemicals, oils and vibrations

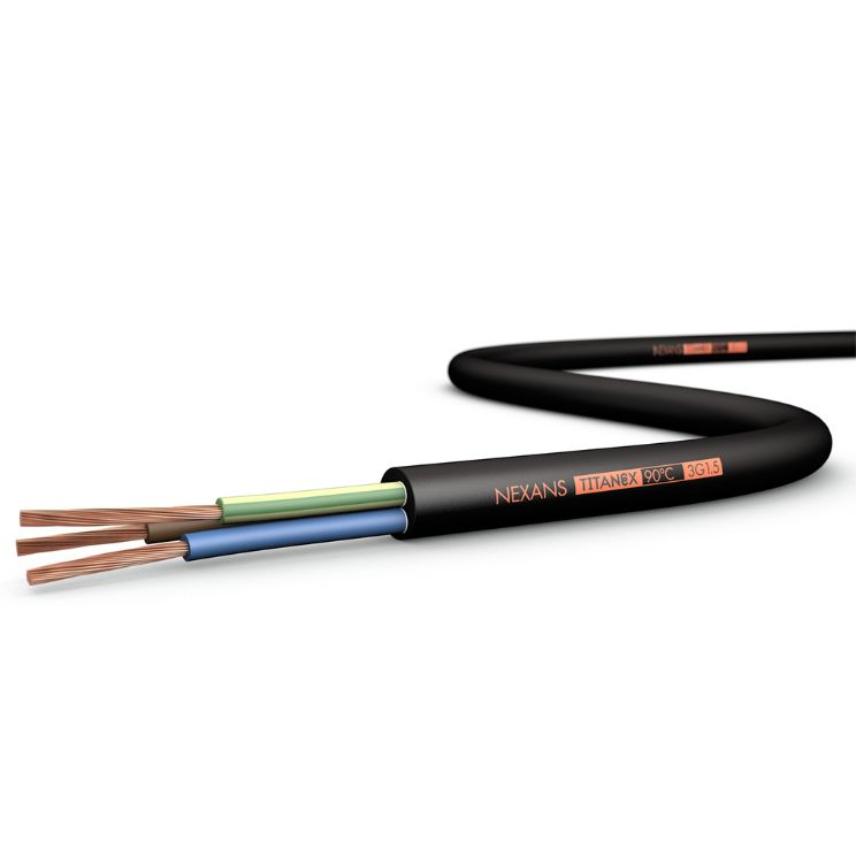

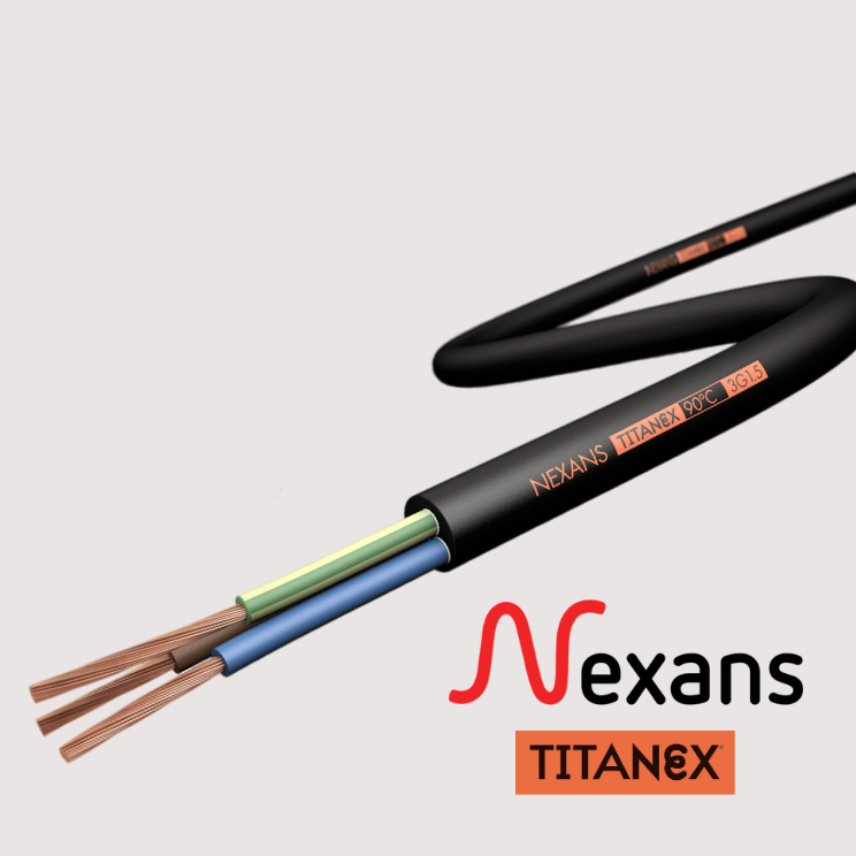

TITANEX® H07RN-F cables with EPR rubber insulation and rubber sheathing offer outstanding mechanical properties to meet your most varied requirements. No matter what the installation conditions are, whether indoors or outdoors, in cramped and hazardous environments or in the presence of oils and chemicals, TITANEX combines strengh and flexibility to meet all your requirements.
For more than 50 years the TITANEX® cables have been recognized and are the guarantee of reliable installations in industrial environments (factories, contruction sites, ports, ...) whether they are fixed or mobile such as for cranes, machines tool connections, motor power supplies .... The mechanical qualities of TITANEX cables also make them suitable for use in event environments, such as festivals, concerts and sport events, where the cable is exposed without protection and can be used several times.

  • Core temperature : 90°C
  • Operating Voltage : 450/750V mobile, 0.6/1kV fixed. TITANEX H07RN-F cables have been designed tio limit the generation and spread of fire and smoke.
  • Reaction to fire : Eca (according to EN 50575:2014+A1:2016)
  • Flame retardant (IEC 60332-1, C2)

Installation

TITANEX H07RN-F cables can be laid in cable trays, on shelves, inside ducts or fixed to walls, outside with or without protection. They can also be immersed with additionnal mechanical protection. Additionnaly, they can also be intalled outdoors without protection (UV resistance).


Minimum bending radius

  • Dynamic : 6 to 8 x outer diameter of the cable.
  • Static : 3 x outer diameter of the cable if OD< or = 12mm ; 4x if OD > 12mm.



Laying cable conductors

When pulling the cable, all conductors must be equally stressed. Th tensils force must never exceed 15N/mm2 of total cross-sections.
Th maximum tensile force should never exceed 1000N  in total, although the above rule may lead to higher values for large cross-sections.



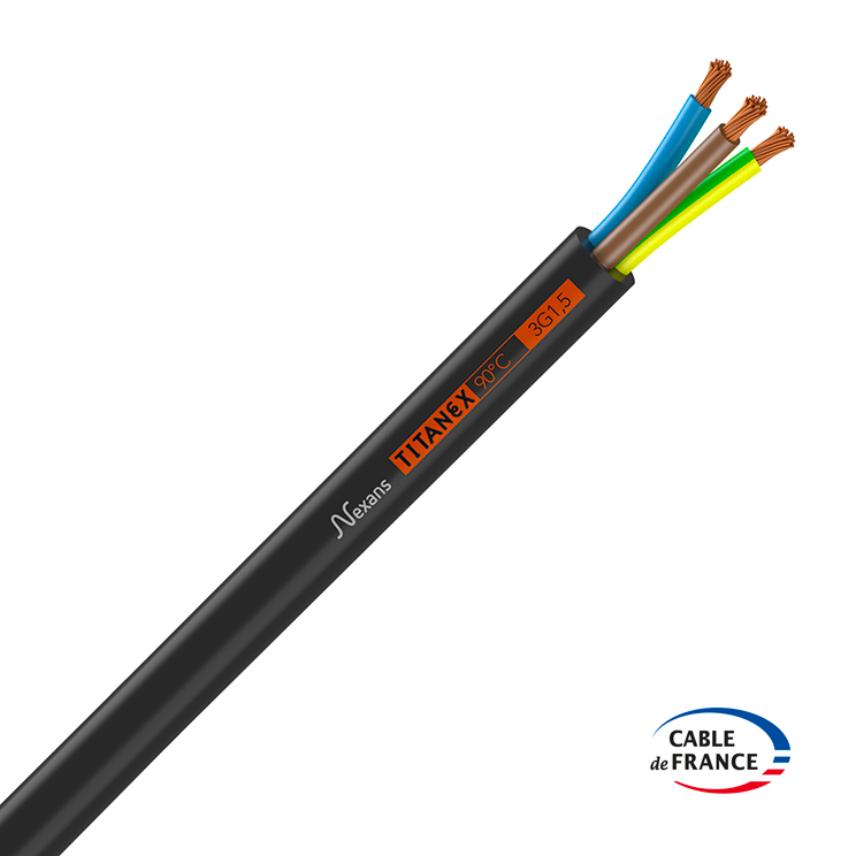

Marking

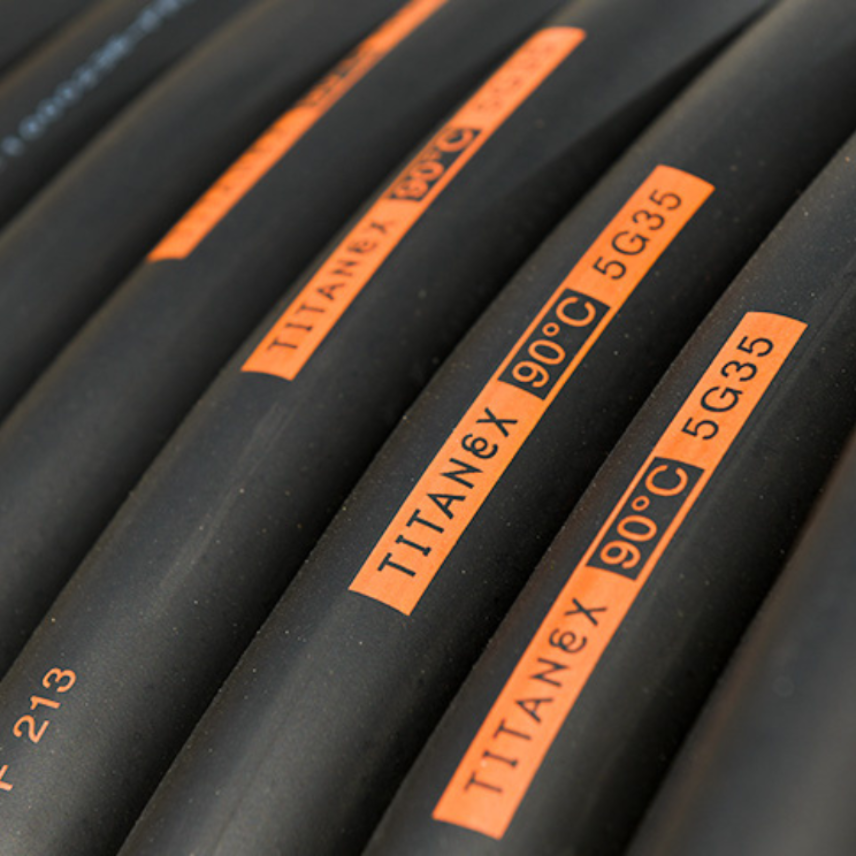

TITANEX 90°C n (x or G) s NEXANS CE «har» USE H07RN-F - factory n° Made in France Y Eca n°DoP

Metric marking

Marking every metre, so that only the required length is unwound.

TITANEX MADE TO SURVIVE

Additional informations Nexans TITANEX

Core identification

(In accordance with european harmonization HD308 S2)

1x: black
2x: brown - blue
3x: brown - black - grey (brown - black - blue if the conductor cross-section is 1.5 or 2.5mm²)
3G: brown - blue - green/yellow
4x: brown - black - grey - blue
4G: brown - black - grey - green/yellow
5x: black cores with printed numbers
5G: blue - brown - black - grey - green/yellow
7 cores and above : black cores with printed numbers

Current rating capacities

The data are indicated for continuous duty operation and apply to:

  • Maximum conductor temperature = 90 °C
  • Nominal frequencies = 50 or 60 Hz
  • One cable in free air (on perforated trays)
  • Ambient temperature = 30 °C

Data recording from IEC 60364-5-52 or NF C 15-100



Voltage drop

The data are based on Cos ø = 0.8



Minimum bending radius

  • Static use: 3 x cable outer diameter
  • Dynamic use: 6 to 8 x outer cable diameter.





Nexans Titanex, Made to survive

NEXANS TITANEX FEATURES

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Bare copper
Insulation
Special cross-linked elastomer
Outer sheath
Special cross-linked elastomer
Sheath colour
Black
Lead free
Yes
Conductor shape
Circular

Dimensional characteristics

Dimensional characteristics

Average sheath thickness
- mm

Mechanical characteristics

Mechanical characteristics

Cable flexibility
Flexible

Usage characteristics

Usage characteristics

Silicone free
Yes
Chemical resistance
Accidental
Water proof
Good
Length
- m
Max. conductor temperature in service
90 °C
Oil resistance
Yes
Operating temperature, range
-25 ... 55 °C
RoHS compliant
Yes
Short-circuit max. conductor temperature
250 °C

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
