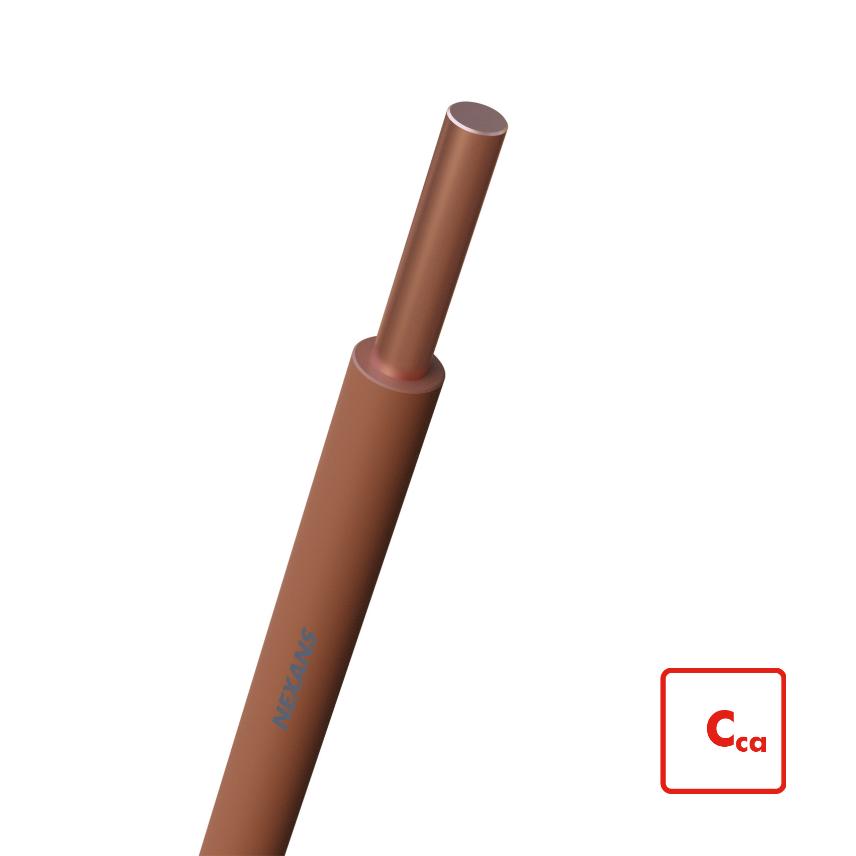

ALSECURE® H07Z1-U Cca 1x6 BROWN TYPE 2

Description

Description

Standards

  • International
    EN 50525-3-31

Application

  • Halogenfree insulated conductors for fixed installations
  • For domestic and industrial applications as well as for panel wiring

Design

  1. Copper core, solid (U) or stranded (R)
  2. Halogen free and fire retardant insulating sheath

Installation

  • In industries
  • In houses
  • Open-air laying : with protection
  • Ground laying :  with protection

Note only for ALSECURE H07Z1-R Cca Type 2

UV resistance according to EN 50289-4-17 Method A (test duration 720h) establishes ALSECURE H07Z1-R Cca Type 2 is particularly fitted for our Belgian climate. ALSECURE H07Z1-R Cca Type 2 can thus be exposed to direct sunlight. This UV resistance is valid for the ALSECURE H07Z1-R Cca Type 2 accompanied by the Declaration of Performance (DoP) n°1000277-BEDO.

More on UV resistance

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Conductor flexibility
Solid class 1
Conductor shape
Round, massive
Insulation
Halogen-free
Halogen free
Yes
Wire colour
Brown

Dimensional characteristics

Dimensional characteristics

Conductor cross-section
6 mm²
Number of cores
1
Average insulation thickness
0.8 mm
Nominal outer diameter
4.7 mm
Minimum outer diameter
4.1 mm
Maximum outer diameter
5.0 mm
Approximate weight
75 kg/km

Electrical characteristics

Electrical characteristics

Permissible current rating in open air
41 A
Voltage drop, single phase
6.2 V/A.km
Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

Bending factor when laying
4 (xD)
Field of application
Indoor
U.V resistance
No
Max. conductor temperature in service
70 °C
Operating temperature, range
-5 ... 60 °C
Resistance to vibrations
Moderate
Chemical resistance
Medium
Packaging
Cut to length
Length
1 m

Resources

Resources

Selling & delivery Information

  • Other colours available upon request

Declaration of Performance

  • Declaration of Performance n� : 1000277-BEBU
  • Certification Date : 9/22/17
  • AVCP (Assessment and Verification of Constancy of Performance) : System 1+
  • Notified body : NB 2658
  • Declared performance : Cca-s1a,d2,a1
