One-way wooden drums

One-way wooden drums

One-way wooden drums

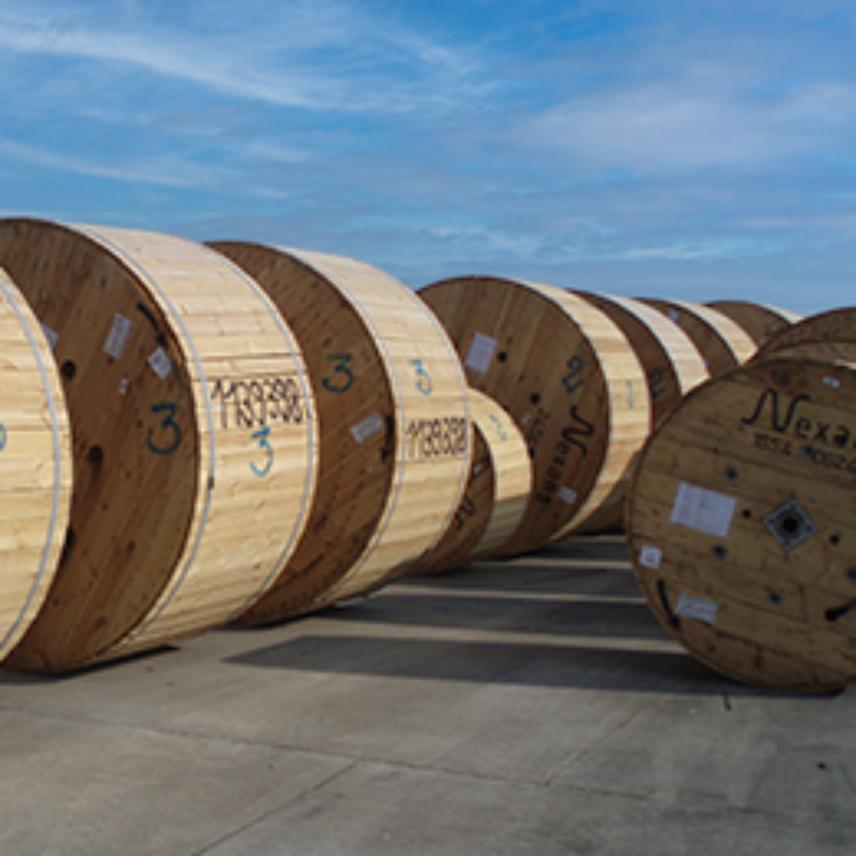

Nailed wooden drums (one way drums)

Read more
Download all documents
Contact us

Products

Actions

  • products

ABE

Nexans ref. ABE

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 750 mm
  • Barrel diameter: 350 mm
  • Width between flanges: 350 mm
  • Width: 430 mm
  • Used volume: 0.12 m3



BBE

Nexans ref. BBE

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 900 mm
  • Barrel diameter: 450 mm
  • Width between flanges: 450 mm
  • Width: 550 mm
  • Used volume: 0.214 m3



C60E

Nexans ref. C60E

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 600 mm
  • Barrel diameter: 250 mm
  • Width between flanges: 420 mm
  • Width: 476 mm
  • Used volume: 0.098 m3



CBE

Nexans ref.

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1050 mm
  • Barrel diameter: 550 mm
  • Width between flanges: 450 mm
  • Width: 550 mm
  • Used volume: 0.282 m3



DBE

Nexans ref. DBE

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1200 mm
  • Barrel diameter: 650 mm
  • Width between flanges: 600 mm
  • Width: 700 mm
  • Used volume: 0.479 m3



E102B

Nexans ref.

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1025 mm
  • Barrel diameter: 460 mm
  • Width between flanges: 600 mm
  • Width: 760 mm
  • Used volume: 0.395 m3



E105A

Nexans ref. 105A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1050 mm
  • Barrel diameter: 500 mm
  • Width between flanges: 500 mm
  • Width: 580 mm
  • Used volume: 0.334 m3



E105AD

Nexans ref. 105AD

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1050 mm
  • Barrel diameter: 400 mm
  • Width between flanges: 700 mm
  • Width: 780 mm
  • Used volume: 0.518 m3



E105AH

Nexans ref. 105AH

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1050 mm
  • Barrel diameter: 550 mm
  • Width between flanges: 450 mm
  • Width: 550 mm
  • Used volume: 0.282 m3



E105B

Nexans ref. 105B

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1050 mm
  • Barrel diameter: 500 mm
  • Width between flanges: 700 mm
  • Width: 780 mm
  • Used volume: 0.468 m3



E105D

Nexans ref. 105D

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1050 mm
  • Barrel diameter: 550 mm
  • Width between flanges: 450 mm
  • Width: 500 mm
  • Used volume: 0.282 m3



E105S

Nexans ref. 105S

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1050 mm
  • Barrel diameter: 400 mm
  • Width between flanges: 700 mm
  • Width: 780 mm
  • Used volume: 0.518 m3



E105W

Nexans ref. 105W

  • Packaging: Unit
  • Barrel material: Plastic
  • Flange diameter: 1050 mm
  • Barrel diameter: 400 mm
  • Width between flanges: 500 mm
  • Width: 580 mm
  • Used volume: 0.37 m3



E115

Nexans ref. 115ZZ

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1150 mm
  • Barrel diameter: 600 mm
  • Width between flanges: 650 mm
  • Width: 730 mm
  • Used volume: 0.491 m3



E120

Nexans ref. 120ZZ

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1200 mm
  • Barrel diameter: 600 mm
  • Width between flanges: 670 mm
  • Width: 750 mm
  • Used volume: 0.568 m3



E120A

Nexans ref. 120A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1200 mm
  • Barrel diameter: 650 mm
  • Width between flanges: 600 mm
  • Width: 680 mm
  • Used volume: 0.479 m3



E120B

Nexans ref. 120B

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1200 mm
  • Barrel diameter: 850 mm
  • Width between flanges: 670 mm
  • Width: 742 mm
  • Used volume: 0.377 m3



E125H

Nexans ref. 125H

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1250 mm
  • Barrel diameter: 630 mm
  • Width between flanges: 630 mm
  • Width: 742 mm
  • Used volume: 0.576 m3



E125U

Nexans ref. 125U

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1250 mm
  • Barrel diameter: 630 mm
  • Width between flanges: 710 mm
  • Width: 838 mm
  • Used volume: 0.649 m3



E130

Nexans ref. 130ZZ

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1300 mm
  • Barrel diameter: 700 mm
  • Width between flanges: 650 mm
  • Width: 730 mm
  • Used volume: 0.612 m3



E135C

Nexans ref. E135C

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1350 mm
  • Barrel diameter: 550 mm
  • Width between flanges: 810 mm
  • Width: 910 mm
  • Used volume: 0.966 m3



E135D

Nexans ref. E135D

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1350 mm
  • Barrel diameter: 550 mm
  • Width between flanges: 670 mm
  • Width: 750 mm
  • Used volume: 0.799 m3



E140A

Nexans ref. 140A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1400 mm
  • Barrel diameter: 610 mm
  • Width between flanges: 640 mm
  • Width: 740 mm
  • Used volume: 0.798 m3



E140AD

Nexans ref. 140AD

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1400 mm
  • Barrel diameter: 710 mm
  • Width between flanges: 750 mm
  • Width: 858 mm
  • Used volume: 0.857 m3



E140AL

Nexans ref. 140AL

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1400 mm
  • Barrel diameter: 800 mm
  • Width between flanges: 680 mm
  • Width: 792 mm
  • Used volume: 0.704 m3



E140AX

Nexans ref. 140AX

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1400 mm
  • Barrel diameter: 710 mm
  • Width between flanges: 810 mm
  • Width: 938 mm
  • Used volume: 0.926 m3



E140B

Nexans ref. 140B

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1400 mm
  • Barrel diameter: 650 mm
  • Width between flanges: 800 mm
  • Width: 900 mm
  • Used volume: 0.966 m3



E140C

Nexans ref. 140C

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1400 mm
  • Barrel diameter: 800 mm
  • Width between flanges: 620 mm
  • Width: 732 mm
  • Used volume: 0.642 m3



E140D

Nexans ref. 140D

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1400 mm
  • Barrel diameter: 800 mm
  • Width between flanges: 600 mm
  • Width: 700 mm
  • Used volume: 0.622 m3



E140E

Nexans ref. 140E

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1400 mm
  • Barrel diameter: 710 mm
  • Width between flanges: 810 mm
  • Width: 938 mm
  • Used volume: 0.926 m3



E152A

Nexans ref. 152A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1524 mm
  • Barrel diameter: 710 mm
  • Width between flanges: 710 mm
  • Width: 824 mm
  • Used volume: 1.014 m3



E153

Nexans ref. 153ZZ

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1530 mm
  • Barrel diameter: 800 mm
  • Width between flanges: 650 mm
  • Width: 750 mm
  • Used volume: 0.868 m3



E153B

Nexans ref. 153B

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1530 mm
  • Barrel diameter: 1000 mm
  • Width between flanges: 670 mm
  • Width: 750 mm
  • Used volume: 0.705 m3



E153X

Nexans ref. E153X

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1530 mm
  • Barrel diameter: 600 mm
  • Width between flanges: 900 mm
  • Width: 1000 mm
  • Used volume: 1.4 m3



E160AG

Nexans ref. E160AG

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1600 mm
  • Barrel diameter: 620 mm
  • Width between flanges: 1000 mm
  • Width: 1128 mm
  • Used volume: 1.708 m3



E160J

Nexans ref. 160J

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1600 mm
  • Barrel diameter: 800 mm
  • Width between flanges: 900 mm
  • Width: 1020 mm
  • Used volume: 1.357 m3



E160Y

Nexans ref. 160Y

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1600 mm
  • Barrel diameter: 900 mm
  • Width between flanges: 980 mm
  • Width: 1120 mm
  • Used volume: 1.346 m3



E165A

Nexans ref. 165A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1650 mm
  • Barrel diameter: 900 mm
  • Width between flanges: 820 mm
  • Width: 932 mm
  • Used volume: 1.231 m3



E165B

Nexans ref. 165B

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1650 mm
  • Barrel diameter: 750 mm
  • Width between flanges: 1000 mm
  • Width: 1128 mm
  • Used volume: 1.696 m3



E165C

Nexans ref. 165C

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1650 mm
  • Barrel diameter: 610 mm
  • Width between flanges: 640 mm
  • Width: 752 mm
  • Used volume: 1.181 m3



E165D

Nexans ref. 165D

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1650 mm
  • Barrel diameter: 650 mm
  • Width between flanges: 800 mm
  • Width: 912 mm
  • Used volume: 1.445 m3



E165E

Nexans ref. 165E

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1650 mm
  • Barrel diameter: 960 mm
  • Width between flanges: 600 mm
  • Width: 700 mm
  • Used volume: 0.848 m3



E173A

Nexans ref. 173A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1730 mm
  • Barrel diameter: 900 mm
  • Width between flanges: 1150 mm
  • Width: 1290 mm
  • Used volume: 1.971 m3



E173B

Nexans ref. 173B

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1730 mm
  • Barrel diameter: 850 mm
  • Width between flanges: 1150 mm
  • Width: 1290 mm
  • Used volume: 2.05 m3



E173C

Nexans ref. 173C

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1730 mm
  • Barrel diameter: 1000 mm
  • Width between flanges: 1000 mm
  • Width: 1140 mm
  • Used volume: 1.565 m3



E173D

Nexans ref. 173D

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1730 mm
  • Barrel diameter: 710 mm
  • Width between flanges: 965 mm
  • Width: 1105 mm
  • Used volume: 1.886 m3



E173E

Nexans ref. 173E

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1730 mm
  • Barrel diameter: 710 mm
  • Width between flanges: 660 mm
  • Width: 800 mm
  • Used volume: 1.29 m3



E173F

Nexans ref. 173F

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1730 mm
  • Barrel diameter: 710 mm
  • Width between flanges: 965 mm
  • Width: 1105 mm
  • Used volume: 1.886 m3



E183

Nexans ref. 183ZZ

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1830 mm
  • Barrel diameter: 1000 mm
  • Width between flanges: 1000 mm
  • Width: 1128 mm
  • Used volume: 1.844 m3



E183E

Nexans ref. 183E

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1830 mm
  • Barrel diameter: 1000 mm
  • Width between flanges: 1000 mm
  • Width: 1140 mm
  • Used volume: 1.844 m3



E185A

Nexans ref. 185A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1850 mm
  • Barrel diameter: 600 mm
  • Width between flanges: 600 mm
  • Width: 700 mm
  • Used volume: 1.443 m3



E190

Nexans ref. 190ZZ

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1900 mm
  • Barrel diameter: 1000 mm
  • Width between flanges: 1000 mm
  • Width: 1128 mm
  • Used volume: 2.049 m3



E190A

Nexans ref. 190A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1900 mm
  • Barrel diameter: 1200 mm
  • Width between flanges: 950 mm
  • Width: 1078 mm
  • Used volume: 1.619 m3



E200W

Nexans ref. 200W

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2000 mm
  • Barrel diameter: 1000 mm
  • Width between flanges: 1000 mm
  • Width: 1112 mm
  • Used volume: 2.356 m3



E210

Nexans ref. E210Z

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2100 mm
  • Barrel diameter: 1100 mm
  • Width between flanges: 1000 mm
  • Width: 1152 mm
  • Used volume: 2.513 m3



E210P

Nexans ref.

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2100 mm
  • Barrel diameter: 1100 mm
  • Width between flanges: 1000 mm
  • Width: 1152 mm
  • Used volume: 2.513 m3



E210P

Nexans ref. E210P

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2100 mm
  • Barrel diameter: 1100 mm
  • Width between flanges: 1000 mm
  • Width: 1152 mm
  • Used volume: 2.513 m3



E210V

Nexans ref. E210V

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2100 mm
  • Barrel diameter: 1000 mm
  • Width between flanges: 1000 mm
  • Width: 1152 mm
  • Used volume: 2.678 m3



E210W

Nexans ref. E210W

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2100 mm
  • Barrel diameter: 1600 mm
  • Width between flanges: 1000 mm
  • Width: 1152 mm
  • Used volume: 1.452 m3



E220A

Nexans ref. E220A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2200 mm
  • Barrel diameter: 1400 mm
  • Width between flanges: 1000 mm
  • Width: 1140 mm
  • Used volume: 2.261 m3



E220B

Nexans ref. E220B

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2200 mm
  • Barrel diameter: 1200 mm
  • Width between flanges: 1150 mm
  • Width: 1278 mm
  • Used volume: 3.07 m3



E220D

Nexans ref. E220D

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2200 mm
  • Barrel diameter: 1100 mm
  • Width between flanges: 1000 mm
  • Width: 1152 mm
  • Used volume: 2.85 m3



E220E

Nexans ref.

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2200 mm
  • Barrel diameter: 1000 mm
  • Width between flanges: 1000 mm
  • Width: 1152 mm
  • Used volume: 3.015 m3



E220E

Nexans ref. E220E

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2200 mm
  • Barrel diameter: 1000 mm
  • Width between flanges: 1000 mm
  • Width: 1152 mm
  • Used volume: 3.015 m3



E220Z

Nexans ref. E220Z

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2200 mm
  • Barrel diameter: 1200 mm
  • Width between flanges: 1000 mm
  • Width: 1152 mm
  • Used volume: 2.67 m3



E245

Nexans ref. 245ZZ

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2450 mm
  • Barrel diameter: 1300 mm
  • Width between flanges: 1000 mm
  • Width: 1168 mm
  • Used volume: 3.387 m3



E245A

Nexans ref. 245A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2450 mm
  • Barrel diameter: 1100 mm
  • Width between flanges: 1000 mm
  • Width: 1168 mm
  • Used volume: 3.764 m3



E245C

Nexans ref.

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2450 mm
  • Barrel diameter: 1200 mm
  • Width between flanges: 1000 mm
  • Width: 1168 mm
  • Used volume: 3.583 m3



E245K

Nexans ref. 245K

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2450 mm
  • Barrel diameter: 1300 mm
  • Width between flanges: 1000 mm
  • Width: 1168 mm
  • Used volume: 3.387 m3



E245L

Nexans ref. 245L

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2450 mm
  • Barrel diameter: 1300 mm
  • Width between flanges: 1375 mm
  • Width: 1543 mm
  • Used volume: 4.657 m3



E260

Nexans ref. 260ZZ

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2600 mm
  • Barrel diameter: 1600 mm
  • Width between flanges: 1000 mm
  • Width: 1168 mm
  • Used volume: 3.298 m3



E260A

Nexans ref. 260A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2600 mm
  • Barrel diameter: 1300 mm
  • Width between flanges: 1000 mm
  • Width: 1168 mm
  • Used volume: 3.981 m3



E260B

Nexans ref. 260B

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2600 mm
  • Barrel diameter: 1200 mm
  • Width between flanges: 1000 mm
  • Width: 1168 mm
  • Used volume: 4.178 m3



E260J

Nexans ref. 260J

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2600 mm
  • Barrel diameter: 1500 mm
  • Width between flanges: 1000 mm
  • Width: 1168 mm
  • Used volume: 3.542 m3



E260Q

Nexans ref. 260Q

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2600 mm
  • Barrel diameter: 1600 mm
  • Width between flanges: 1000 mm
  • Width: 1168 mm
  • Used volume: 3.298 m3



E45

Nexans ref. E45

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 450 mm
  • Barrel diameter: 200 mm
  • Width between flanges: 300 mm
  • Width: 353 mm
  • Used volume: 0.042 m3



E50G

Nexans ref. 050G

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 500 mm
  • Barrel diameter: 200 mm
  • Width between flanges: 420 mm
  • Width: 470 mm
  • Used volume: 0.069 m3



E50H

Nexans ref. 050H

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 500 mm
  • Barrel diameter: 300 mm
  • Width between flanges: 420 mm
  • Width: 470 mm
  • Used volume: 0.052 m3



E50I

Nexans ref. 050I

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 500 mm
  • Barrel diameter: 250 mm
  • Width between flanges: 470 mm
  • Width: 520 mm
  • Used volume: 0.069 m3



E60

Nexans ref. 060ZZ

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 600 mm
  • Barrel diameter: 300 mm
  • Width between flanges: 330 mm
  • Width: 380 mm
  • Used volume: 0.069 m3



E60AA

Nexans ref. 060AA

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 600 mm
  • Barrel diameter: 250 mm
  • Width between flanges: 330 mm
  • Width: 380 mm
  • Used volume: 0.077 m3



E60AK

Nexans ref. 060AK

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 600 mm
  • Barrel diameter: 400 mm
  • Width between flanges: 420 mm
  • Width: 470 mm
  • Used volume: 0.065 m3



E60D

Nexans ref. 060D

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 600 mm
  • Barrel diameter: 350 mm
  • Width between flanges: 300 mm
  • Width: 350 mm
  • Used volume: 0.055 m3



E60G

Nexans ref. 060G

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 600 mm
  • Barrel diameter: 250 mm
  • Width between flanges: 330 mm
  • Width: 380 mm
  • Used volume: 0.077 m3



E60J

Nexans ref. 060J

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 600 mm
  • Barrel diameter: 200 mm
  • Width between flanges: 386 mm
  • Width: 436 mm
  • Used volume: 0.097 m3



E60X

Nexans ref. 060X

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 600 mm
  • Barrel diameter: 300 mm
  • Width between flanges: 500 mm
  • Width: 550 mm
  • Used volume: 0.106 m3



E60Z

Nexans ref. E60Z

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 600 mm
  • Barrel diameter: 300 mm
  • Width between flanges: 330 mm
  • Width: 383 mm
  • Used volume: 0.07 m3



E70/A

Nexans ref. 070A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 700 mm
  • Barrel diameter: 250 mm
  • Width between flanges: 385 mm
  • Width: 435 mm
  • Used volume: 0.129 m3



E70C

Nexans ref. 070C

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 700 mm
  • Barrel diameter: 250 mm
  • Width between flanges: 385 mm
  • Width: 435 mm
  • Used volume: 0.129 m3



E70H

Nexans ref. 070H

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 700 mm
  • Barrel diameter: 300 mm
  • Width between flanges: 420 mm
  • Width: 470 mm
  • Used volume: 0.131 m3



E70I

Nexans ref. 070I

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 700 mm
  • Barrel diameter: 400 mm
  • Width between flanges: 420 mm
  • Width: 470 mm
  • Used volume: 0.108 m3



E70K

Nexans ref. 070K

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 700 mm
  • Barrel diameter: 300 mm
  • Width between flanges: 420 mm
  • Width: 470 mm
  • Used volume: 0.131 m3



E74

Nexans ref. 074ZZ

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 740 mm
  • Barrel diameter: 250 mm
  • Width between flanges: 499 mm
  • Width: 555 mm
  • Used volume: 0.19 m3



E74A

Nexans ref. 074A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 740 mm
  • Barrel diameter: 250 mm
  • Width between flanges: 325 mm
  • Width: 381 mm
  • Used volume: 0.123 m3



E75

Nexans ref. 075ZZ

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 750 mm
  • Barrel diameter: 350 mm
  • Width between flanges: 385 mm
  • Width: 441 mm
  • Used volume: 0.133 m3



E75D

Nexans ref. 075D

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 750 mm
  • Barrel diameter: 150 mm
  • Width between flanges: 496 mm
  • Width: 520 mm
  • Used volume: 0.21 m3



E75F

Nexans ref. 075F

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 750 mm
  • Barrel diameter: 350 mm
  • Width between flanges: 400 mm
  • Width: 456 mm
  • Used volume: 0.138 m3



E75H

Nexans ref.

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 750 mm
  • Barrel diameter: 250 mm
  • Width between flanges: 330 mm
  • Width: 386 mm
  • Used volume: 0.129 m3



E75H

Nexans ref. 075H

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 750 mm
  • Barrel diameter: 250 mm
  • Width between flanges: 330 mm
  • Width: 386 mm
  • Used volume: 0.129 m3



E75K

Nexans ref. 075K

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 750 mm
  • Barrel diameter: 250 mm
  • Width between flanges: 499 mm
  • Width: 555 mm
  • Used volume: 0.195 m3



E75M

Nexans ref. E75M

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 750 mm
  • Barrel diameter: 450 mm
  • Width between flanges: 330 mm
  • Width: 386 mm
  • Used volume: 0.093 m3



E75W

Nexans ref. 075W

  • Packaging: Unit
  • Barrel material: Plastic
  • Flange diameter: 750 mm
  • Barrel diameter: 400 mm
  • Width between flanges: 500 mm
  • Width: 556 mm
  • Used volume: 0.158 m3



E80AE

Nexans ref. 080AE

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 800 mm
  • Barrel diameter: 400 mm
  • Width between flanges: 458 mm
  • Width: 608 mm
  • Used volume: 0.172 m3



E80J

Nexans ref. 080J

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 800 mm
  • Barrel diameter: 300 mm
  • Width between flanges: 408 mm
  • Width: 472 mm
  • Used volume: 0.176 m3



E81/B

Nexans ref. 081B

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 810 mm
  • Barrel diameter: 300 mm
  • Width between flanges: 491 mm
  • Width: 555 mm
  • Used volume: 0.218 m3



E81A

Nexans ref. 081A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 810 mm
  • Barrel diameter: 300 mm
  • Width between flanges: 491 mm
  • Width: 555 mm
  • Used volume: 0.218 m3



E81C

Nexans ref. 081C

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 810 mm
  • Barrel diameter: 400 mm
  • Width between flanges: 520 mm
  • Width: 584 mm
  • Used volume: 0.202 m3



E90

Nexans ref. 090ZZ

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 900 mm
  • Barrel diameter: 450 mm
  • Width between flanges: 475 mm
  • Width: 547 mm
  • Used volume: 0.226 m3



E90B

Nexans ref. 090B

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 900 mm
  • Barrel diameter: 600 mm
  • Width between flanges: 475 mm
  • Width: 531 mm
  • Used volume: 0.167 m3



E90P

Nexans ref. 090P

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 900 mm
  • Barrel diameter: 350 mm
  • Width between flanges: 410 mm
  • Width: 482 mm
  • Used volume: 0.221 m3



E90W

Nexans ref. 090W

  • Packaging: Unit
  • Barrel material: Plastic
  • Flange diameter: 900 mm
  • Barrel diameter: 400 mm
  • Width between flanges: 500 mm
  • Width: 572 mm
  • Used volume: 0.255 m3



E95A

Nexans ref. 095A

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 950 mm
  • Barrel diameter: 350 mm
  • Width between flanges: 475 mm
  • Width: 547 mm
  • Used volume: 0.29 m3



E95B

Nexans ref. 095B

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 955 mm
  • Barrel diameter: 350 mm
  • Width between flanges: 708 mm
  • Width: 788 mm
  • Used volume: 0.439 m3



E95D

Nexans ref. 095D

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 950 mm
  • Barrel diameter: 300 mm
  • Width between flanges: 620 mm
  • Width: 700 mm
  • Used volume: 0.395 m3



EBE

Nexans ref. EBE

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1400 mm
  • Barrel diameter: 800 mm
  • Width between flanges: 600 mm
  • Width: 712 mm
  • Used volume: 0.622 m3



FBE

Nexans ref. FBE

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1650 mm
  • Barrel diameter: 960 mm
  • Width between flanges: 600 mm
  • Width: 728 mm
  • Used volume: 0.848 m3



GBE

Nexans ref. GBE

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 1900 mm
  • Barrel diameter: 1200 mm
  • Width between flanges: 950 mm
  • Width: 1102 mm
  • Used volume: 1.619 m3



HBE

Nexans ref. HBE

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2200 mm
  • Barrel diameter: 1400 mm
  • Width between flanges: 1000 mm
  • Width: 1168 mm
  • Used volume: 2.261 m3



IBE

Nexans ref. IBE

  • Packaging: Unit
  • Barrel material: Wood
  • Flange diameter: 2600 mm
  • Barrel diameter: 1600 mm
  • Width between flanges: 1000 mm
  • Width: 1200 mm
  • Used volume: 3.298 m3



Description

Description

These classic drums are made of resinuous wood. This kind of reels are very resistant. Flanges are made of two layers of wooden board positionned at 90°. They can be treated against external constraints by a thermical or chemical treatment.




Standard dimensions:

        Flanges

               Diameter: From 450 to 2600mm

               Thickness: From 25 to 100 mm



       Cores

               Diameter: From 150 to 2000mm

               Used Width: From 100 to 2000mm



Options possible: Metal circling, metal plates, labelling, painting, treatment (ISMP15, Class II, Class III...)....

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Flange material
Wood

Resources

Resources

Documentation

xls — 0 B
Download
Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
