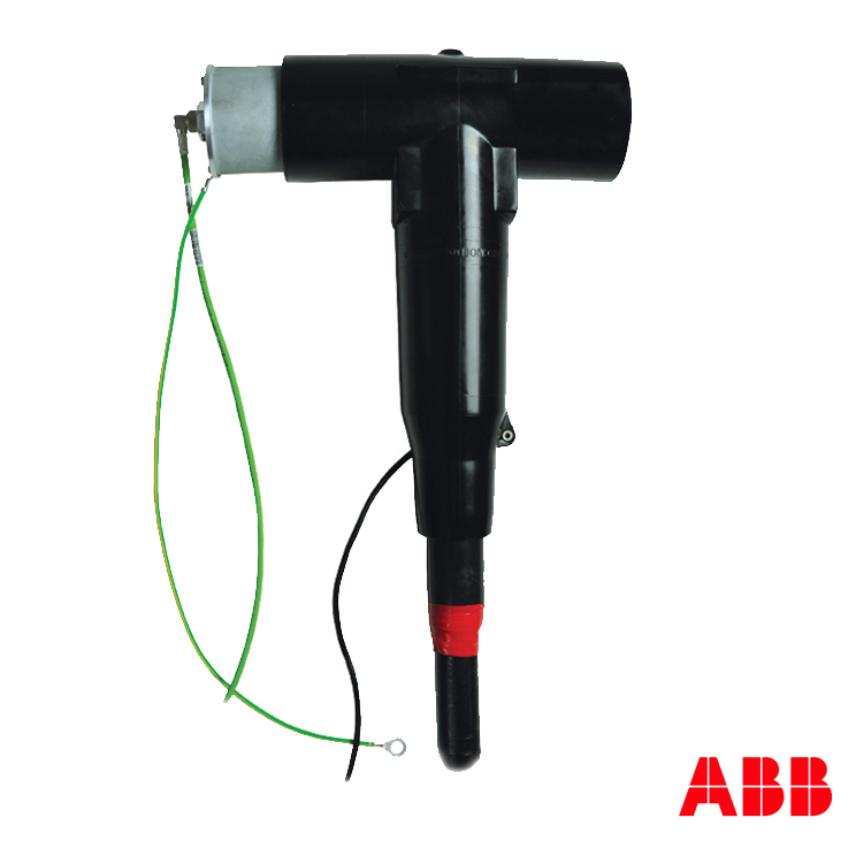

Smart connectors ABB

Products

400/440TB & 440PB with ABB KEVA/KECA

Nexans ref.

  • Dielectric withstand voltage, 50Hz 1mn: 54 kV
  • Impulse voltage: 125 kV
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV



480TB & 800PB with ABB KEVA/KECA

Nexans ref.

  • Dielectric withstand voltage, 50Hz 1mn: 93.5 kV
  • Impulse voltage: 200 kV
  • Rated Voltage Uo/U (Um): 20,8/36 (42) kV



Description

Description

Smart connectors

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Connector shape
T-shaped

Dimensional characteristics

Dimensional characteristics

Conductor cross-section, range
35 ... 630 mm²

Electrical characteristics

Electrical characteristics

Maximal partial discharge at 2Uo
10 pC

Usage characteristics

Usage characteristics

Interface
C (1250 A)
