909TB - Interface F - Symmetrical tee connector

Description

Description

Standards

  • International
    HD 629.1 S2

Application

Separable tee shape connector (bolted type) designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, ...). Also connects cable to cable when using the appropriate mating parts.

Technical characteristics

  • The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
  • Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

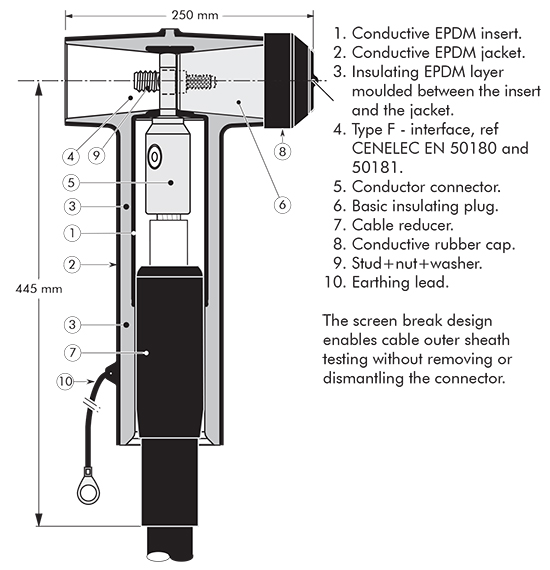

Design

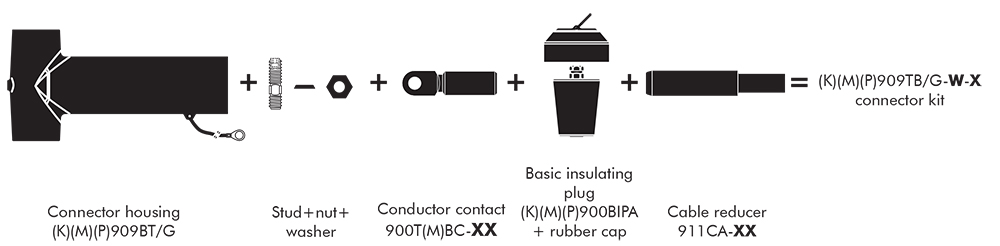

Kit contents

##image:81081##

The kit also comprises silicone grease, field control mastic, gloves, roll adhesive tape, installation instructions and crimp chart.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Connector shape
T-shaped
Connector type
Female
Conductor material
Copper or Aluminum
Technology
Slip-0n

Dimensional characteristics

Dimensional characteristics

Conductor cross-section, range
240 - 1200 mm²

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
20.8/36 kV
Dielectric withstand voltage, 50Hz 1mn
93.5 kV
Impulse voltage
200 kV
Maximal partial discharge at 2Uo
- pC

Usage characteristics

Usage characteristics

Interface
-
