EAXeVB/AH Eca 1kV

Products

EAXeVB/AH Eca 4G240 mm²

Nexans ref. 10214806

  • Packaging: Drum (500m)
  • With Green/Yellow core: Yes
  • Conductor cross-section: 240 mm²



EAXeVB/AH Eca 4X150 0,6/1 KV B500

Nexans ref. 10503912

  • Packaging: Drum (500m)
  • With Green/Yellow core: No
  • Conductor cross-section: 150 mm²



EAXeVB/AH Eca 4X240 0,6/1 KV B500

Nexans ref. 10503906

  • Packaging: Drum (500m)
  • With Green/Yellow core: No
  • Conductor cross-section: 240 mm²



Description

Description

Standards

  • International
    HD 603 S1/5A

Application

For underground installations, distribution and connection cable.

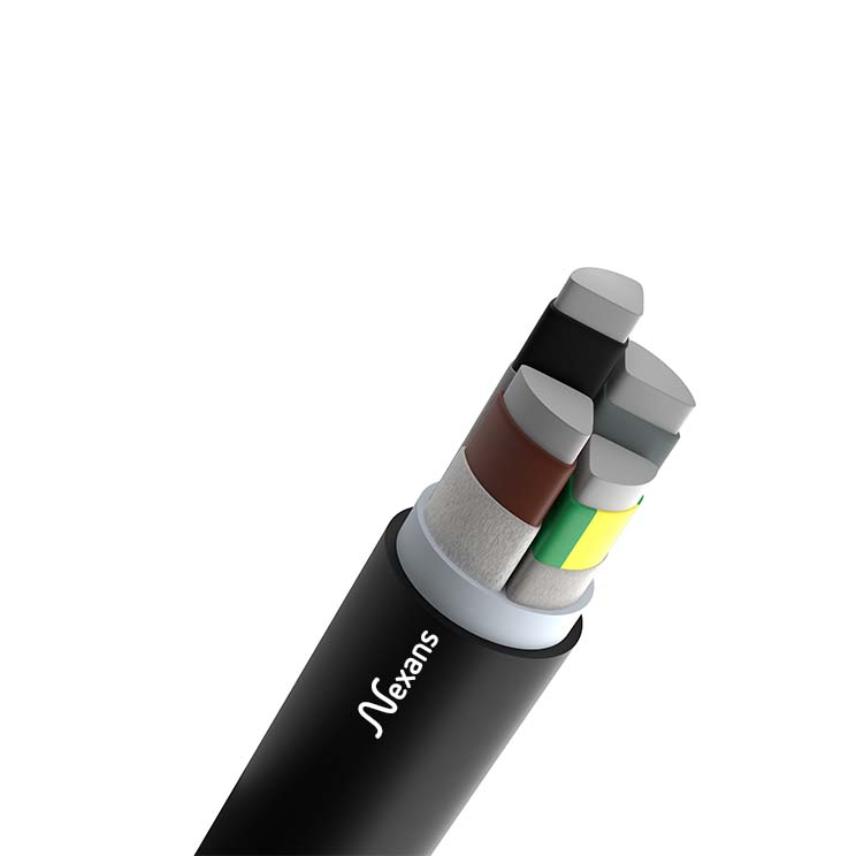

Design

  1. Aluminium core
  2. XLPE insulation
  3. tape water-proof between and over conductors
  4. PVC filler
  5. PVC reinforced oversheath

Colour identification

  • 4 x : blue, brown, black, grey
  • 4 G : green/yellow, brown, black, grey

Colour outer sheath:

  • black

Installation

  • In cable channel
  • In tube
  • With protection
  • In open air
  • In industry or houses

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Aluminum
Insulation
XLPE (chemical)
Material of filler / inner sheath
PVC filler
Outer sheath
PVC
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of cores
4

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/1 kV
Operating voltage
- kV

Usage characteristics

Usage characteristics

Chemical resistance
Medium
Max. conductor temperature in service
90 °C
Resistance to vibrations
Moderate
