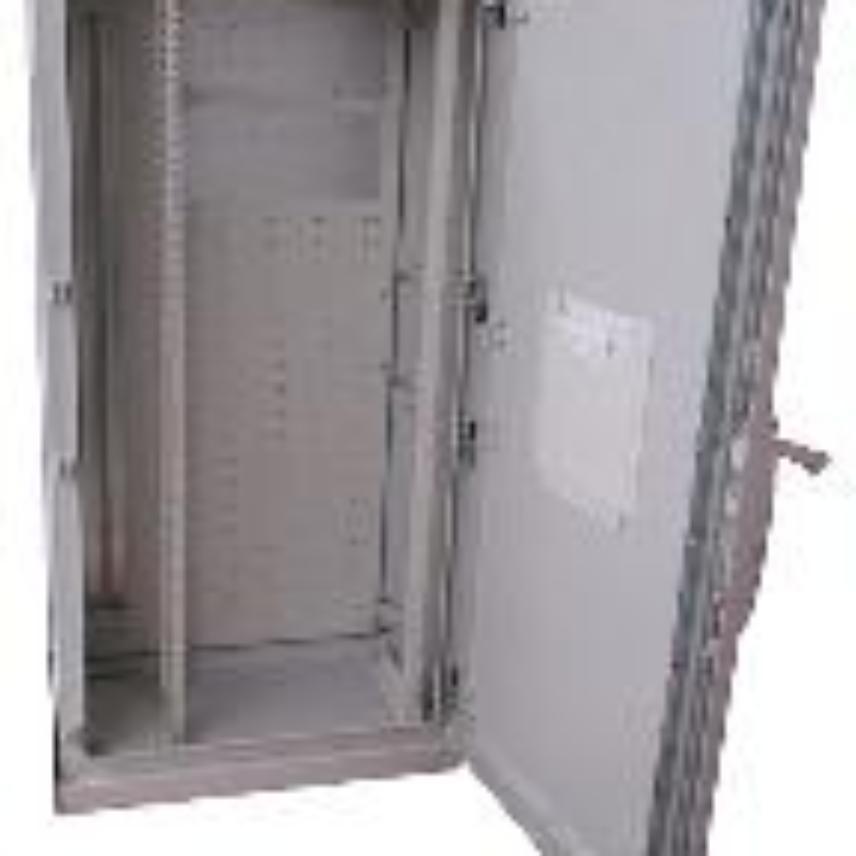

PMI/PRI PE Cabinets

Composition

• Without plinth
• A 19'' or ETSI rack on the right position
• A coiling area for patchcords overlength management on left position
• 1 or 2 fixing plates for clamping or fanout systems
• A bottom plate allowing management of tubes and cables behind the optical modules with rings (provided)
• A door (right 110° opening)
• A 3 points locking system with lock triangle 8mm
• 1 or 2 fixing kits for optical modules (50 cage nuts with screws and washers)

Cabling

Fiber optic cables entry is performed by the roof or the bottom (wall mounting). Cables clamping and fanout is also made in upper or lower part on each cabinet. Management of tubes or cables to modules is made on the bottom plate of the rack behind the modules.

Fixing

Cabinet is fixed on wall with or without ground support with fixing kits (provided).
