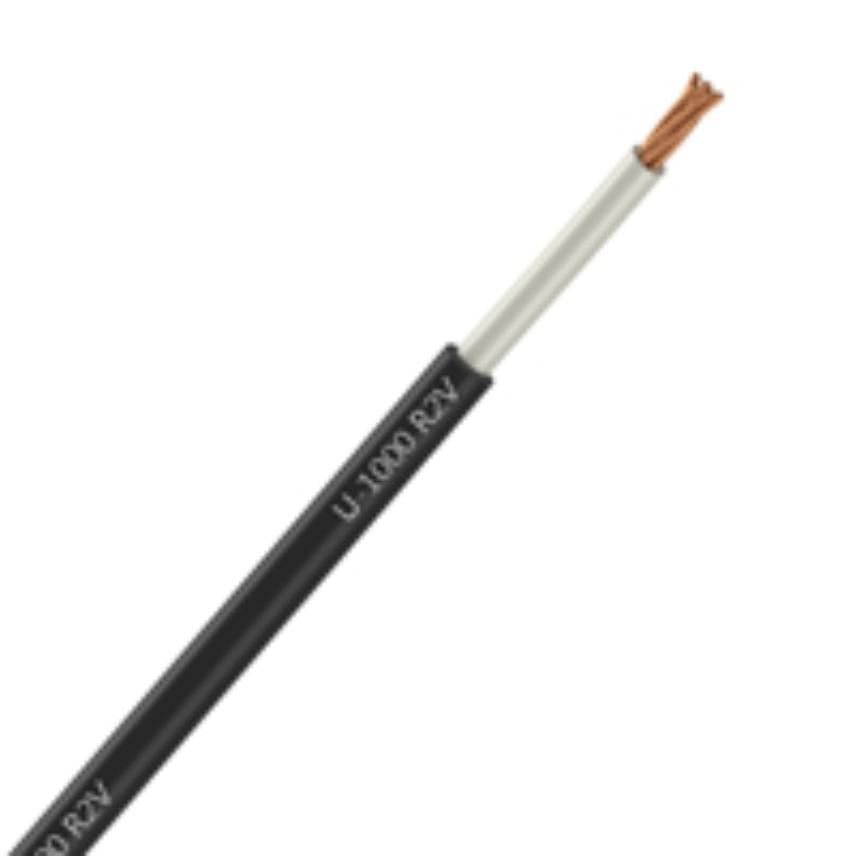

U-1000 R2V 1x185 cut to length

Description

Description

Standards

  • International
    IEC 60502-1
  • National
    XP C 32-321

Application

These U-1000 R2V cables with XLPE insulation and PVC outer sheath can be used in all low voltage power installations. Multiconductors cables are adapted to remote control and telecontrol installations.

It could be installed outside without protection (UV resistance, AN3 according to NF C 15-100)

Regarding DISTINGO™: It's the new U-1000 R2V LV power cables between 1.5 to 16² , from 1 to 5 conductors, with :

  • 1 color line by cross-section
  • and METRIUM™ metric marking is available for all packaging types (drum and coil)

Installation

These cables can be fixed on cable trays, within conduits or fixed to walls, installed outside. They also can be buried directly with extra mechanical protection.

Marking

S.Y. + NF - USE Factory n°  U-1000 R2V n (x or G) s mm²

  • n = number of cores
  • s = section in mm²
  • G = with Green-Yellow
  • x = without Green-Yellow

For DISTINGO™, metric marking METRIUM™ :

·         For packed drums, the length can be directly read
·         For coil and other drums (from cut to length), remaining length is easily calculated. For coil, make the difference between external and internal extremity; for drums make the difference between indication on sticks and external extremity.

Permissible current and voltage drop are given


a) in free air, sheltered from sun, on cable tray or bracket, on cable ladder, and spaced from the wall, temperature = 30°C.
b) buried with thermal resistivity of the ground 1Km/W, laying depth : 600 mm, temperature = 20°C.

If conditions are differents, apply correction factors from NF C 15-100 standard  or equivalent national standard



Voltage drop

Calculated with cosj = 0,8

Distingo RANGE

Tirage sur les conducteurs des câbles

Lors du tirage des câbles, tous les conducteurs participent à l'effort de manière identique. La force maximale de traction ne doit en aucun cas dépasser 5 daN/mm² de section globale (1.5 et 2.5mm²).

New Free Section - 100866

New Free Section - 100971

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Stranded class 2
Conductor material
Bare copper
Insulation
XLPE
Outer sheath
PVC
Sheath colour
Black
With Green/Yellow core
No
With smaller neutral conductor
No
Conductor shape
Circular
Lead free
Yes

Dimensional characteristics

Dimensional characteristics

Number of cores
1
Conductor cross-section
185 mm²
Approximate weight
1786 kg/km
Maximum outer diameter
25.5 mm
Neutral conductor section (when smaller)
- mm²

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Max. DC resistance of the conductor at 20°C
- Ohm/km
Permissible current rating in open air
506 A
Permissible current rating when buried
434 A
Voltage drop, 3 conductors
0.26 V/A.km
Voltage drop, single phase
- V/A.km

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
AG3
Cable flexibility
Rigid

Usage characteristics

Usage characteristics

Range
U-1000 R2V
Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Operating temperature, range
-25 - 60 °C
Flame retardant
C2, NF C 32-070
Weather resistance
Good
Chemical resistance
Accidental
Water proof
Intermittent
Packaging
Cut to length
Length
- m
Laying operation bending radius
306 mm
Minimum static operating bending radius
153 mm
U.V resistance
AN3

Resources

Resources

Declaration of Performance

  • Declaration of Performance n� : 1000205-BEDO
  • Certification Date : 11/10/16
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : NB 1812
  • Declared performance : Eca
