Click-In Power Supplies for FTTO Switches
Click-In Power Supplies for FTTO Switches

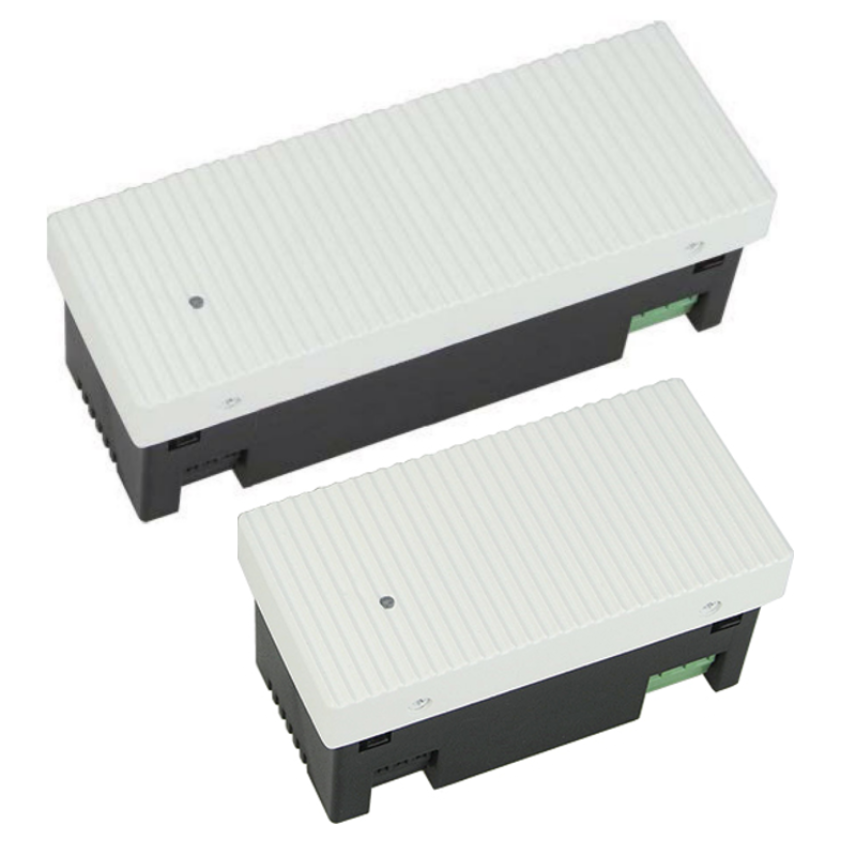

The LANactive Click-In power supply series is especially designed for Nexans LANactive FTTO switches with 54V DC input. The Click-In power supplies allow an easy and toolless installation based on the 45mm installation format.
Read more
Description
Description
- Power Supply for Nexans FTTO switch product range with 54V DC input
- Full PoE (IEEE 802.3af, at & bt) compatibility
- Easy and toolless installation
- Support of 45mm installation format
- Fanless System with aluminium surface for best thermal performance
- Redundant connection without external diodes possible
- Output Power: 70 or 130 Watt
- Control-LED
- Primary Connection (100-240V AC) via removable 3-pin connector
- Secondary connection (54V DC) via removable 3-pin connector
- Low Voltage Directive "Protection Class I"
